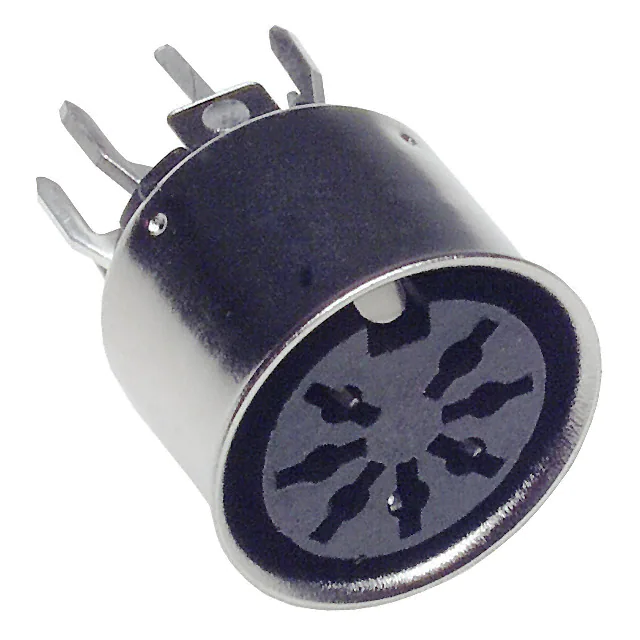

SD-70BV
SD-70BV
- Available: 600
- Manufacturer: CUI Devices
- Part Number: SD-70BV
- Detailed Description: 7 Position Circular Connector Receptacle, Female Sockets Solder
- Category: Connectors, Interconnects | Circular Connectors - Circular Connector Assemblies
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$2.6160
10+
$2.4590
100+
$2.3282
1000+
$2.1974
10000+
$2.0666
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | CUI Devices |
|---|---|
| Series | SD-BV |
| Package | Box |
| Standard Package | 200 |
| Product Status | Active |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 7 |
| Shell Size - Insert | DIN (270 Degree) |
| Shell Size, MIL | - |
| Mounting Type | Through Hole |
| Mounting Feature | - |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Material | Iron Sheet |
| Shell Finish | Nickel |
| Contact Finish - Mating | Tin |
| Color | Silver |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Features | - |
| Shielding | Shielded |
| Current Rating (Amps) | 1A |
| Voltage Rating | 24VDC |
| Cable Opening | - |
| Operating Temperature | -20°C ~ 60°C |
| Backshell Material, Plating | - |
| Contact Material | Brass |
| Contact Finish Thickness - Mating | - |
| Insert Material | - |
| Applications | - |
| Base Product Number | SD-70 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8536.69.4020 |
