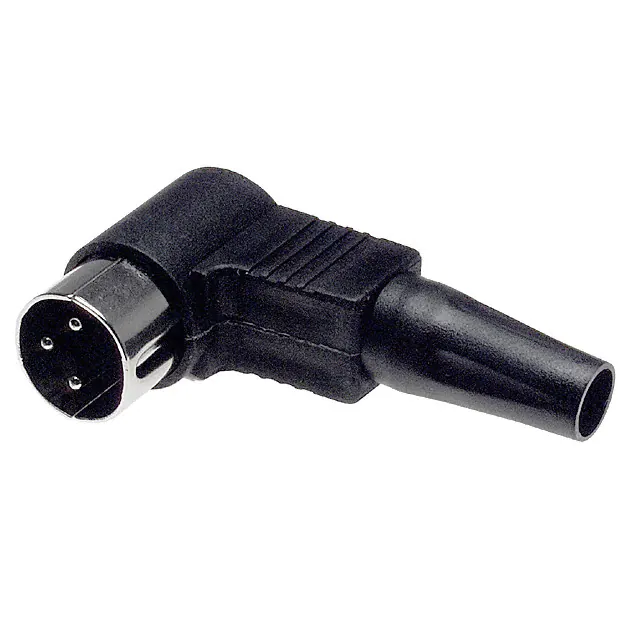

SDR-30
SDR-30
- Available: 300
- Manufacturer: CUI Devices
- Part Number: SDR-30
- Detailed Description: 3 Position Circular Connector Plug, Male Pins Solder
- Category: Connectors, Interconnects | Circular Connectors - Circular Connector Assemblies
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$3.3661
10+
$3.1641
100+
$2.9958
1000+
$2.8275
10000+
$2.6592
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | CUI Devices |
|---|---|
| Series | SDR |
| Package | Bag |
| Standard Package | 100 |
| Product Status | Active |
| Connector Type | Plug, Male Pins |
| Number of Positions | 3 |
| Shell Size - Insert | DIN (180 Degree) |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Mounting Feature | - |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Material | Metal |
| Shell Finish | - |
| Contact Finish - Mating | Nickel |
| Color | Black, Silver |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Features | Strain Relief |
| Shielding | Unshielded |
| Current Rating (Amps) | 1A |
| Voltage Rating | 100VAC |
| Cable Opening | 0.236" (6.00mm) |
| Operating Temperature | -20°C ~ 70°C |
| Backshell Material, Plating | - |
| Contact Material | Brass |
| Contact Finish Thickness - Mating | - |
| Insert Material | Polyacrylonitrile Butadiene Styrene (ABS) |
| Applications | - |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8536.69.4020 |
