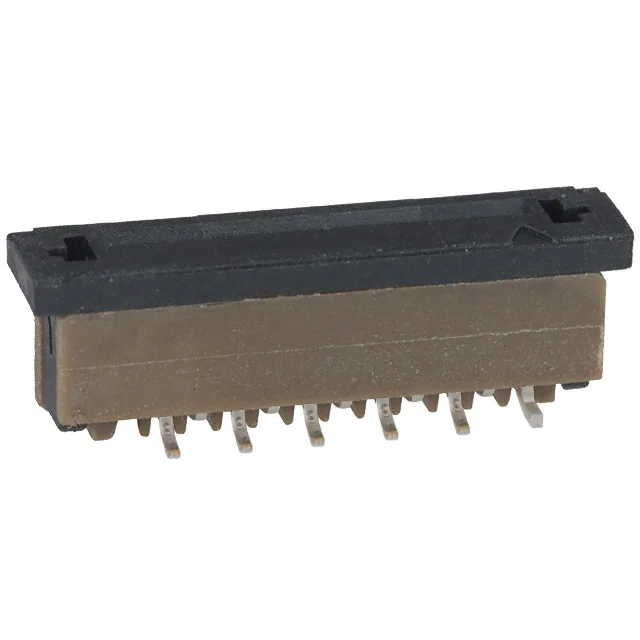

SFW10S-2STME1LF
SFW10S-2STME1LF
- Available: 3000
- Manufacturer: Amphenol ICC (FCI)
- Part Number: SFW10S-2STME1LF
- Detailed Description: 10 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Surface Mount
- Category: Connectors, Interconnects | FFC, FPC (Flat Flexible) Connectors
- RoHS Status： RoHS Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.8040
10+
$0.7558
100+
$0.7156
1000+
$0.6754
10000+
$0.6352
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Amphenol ICC (FCI) |
|---|---|
| Series | SFW |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 1000 |
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Number of Positions | 10 |
| Pitch | 0.039 (1.00mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.33mm |
| Height Above Board | 0.209 (5.30mm) |
| Locking Feature | - |
| Cable End Type | - |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin |
| Housing Material | Thermoplastic, Glass Filled |
| Actuator Material | Thermoplastic, Glass Filled |
| Features | Zero Insertion Force (ZIF) |
| Voltage Rating | 100V |
| Operating Temperature | -55°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 1A |
| Contact Finish Thickness | - |
| Housing Color | Brown |
| Actuator Color | - |
| Mating Cycles | 20 |
| Base Product Number | SFW10S |
Environmental & Export
| RoHS Status | RoHS Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8536.69.4051 |
