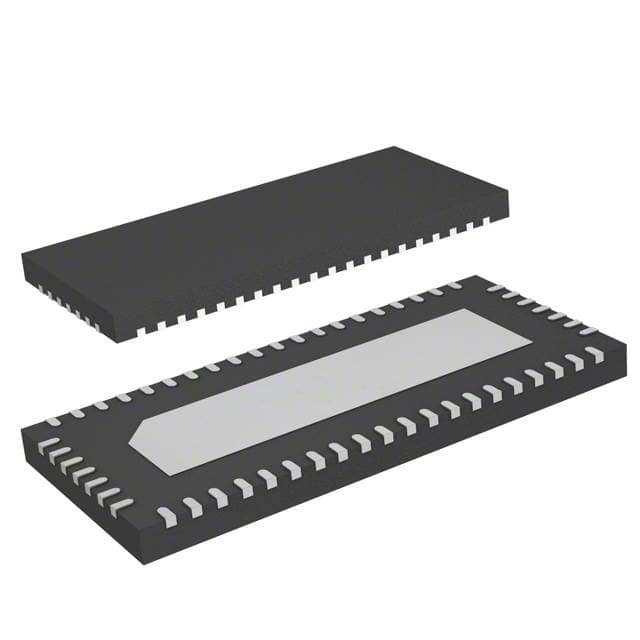

ST3DV520QTR
ST3DV520QTR
- Available: 0
- Manufacturer: STMicroelectronics
- Part Number: ST3DV520QTR
- Detailed Description: 4 Circuit IC Switch 2:1 7.5Ohm 56-QFN (11x5)
- Category: Integrated Circuits (ICs) | Interface - Analog Switches, Multiplexers, Demultiplexers
- RoHS Status： ROHS3 Compliant
Reference Price (USD)
1+
$0.0000
10+
$0.0000
100+
$0.0000
1000+
$0.0000
10000+
$0.0000
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | STMicroelectronics |
|---|---|
| Series | - |
| Package | - |
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 7.5Ohm |
| Channel-to-Channel Matching (ΔRon) | 500mOhm |
| Voltage - Supply, Single (V+) | 3V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 9ns | 8.5ns |
| -3db Bandwidth | 450MHz |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 6pF |
| Current - Leakage (IS(off)) (Max) | 5µA |
| Crosstalk | -45dB @ 250MHz |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 56-WFQFN Exposed Pad |
| Supplier Device Package | 56-QFN (11x5) |
| Base Product Number | ST3DV |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | |
| ECCN | |
| HTSUS |
