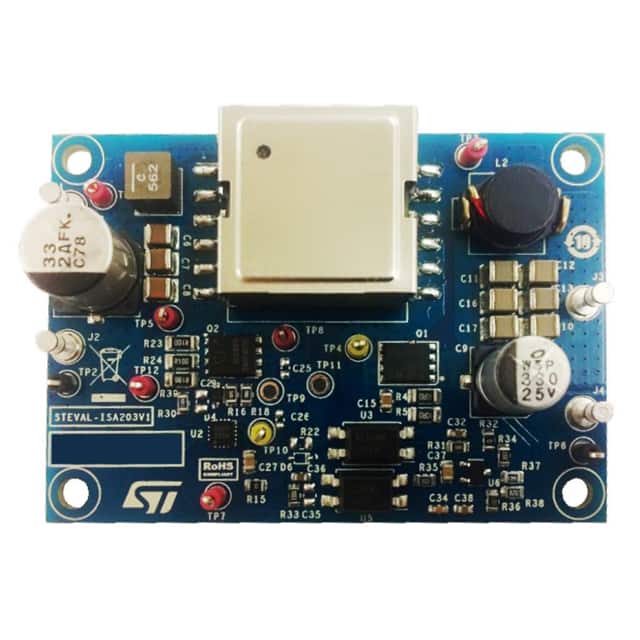

STEVAL-ISA203V1
STEVAL-ISA203V1
- Available: 1
- Manufacturer: STMicroelectronics
- Part Number: STEVAL-ISA203V1
- Detailed Description: PM8804, SRK1000 - DC/DC Converter 1, Non-Isolated Outputs Evaluation Board
- Category: Development Boards, Kits, Programmers | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$75.0000
10+
$70.5000
100+
$66.7500
1000+
$63.0000
10000+
$59.2500
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | STMicroelectronics |
|---|---|
| Series | - |
| Package | - |
| Standard Package | 1 |
| Product Status | Active |
| Main Purpose | DC/DC Converter |
| Outputs and Type | 1 | Non-Isolated |
| Power - Output | 60 W |
| Voltage - Output | 12V |
| Current - Output | 5A |
| Voltage - Input | 42V ~ 56V |
| Regulator Topology | Flyback |
| Frequency - Switching | 200kHz |
| Board Type | Fully Populated |
| Supplied Contents | Board(s) |
| Utilized IC / Part | PM8804 | SRK1000 |
| Base Product Number | ISA203V1 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.40.9580 |
