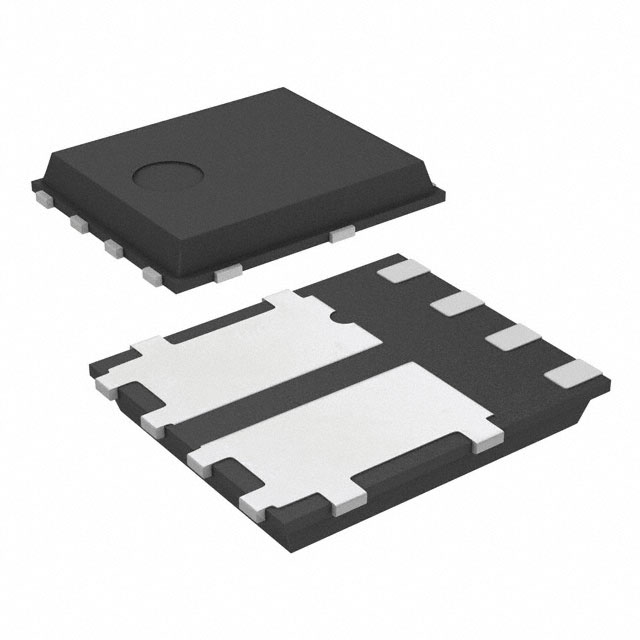

STL36DN6F7
STL36DN6F7
- Available: 55
- Manufacturer: STMicroelectronics
- Part Number: STL36DN6F7
- Detailed Description: Mosfet Array 2 N-Channel (Dual) 60V 33A (Tc) 58W Surface Mount PowerFlat™ (5x6)
- Category: Discrete Semiconductor Products | Transistors - FETs, MOSFETs - Arrays
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$1.4400
10+
$1.3536
100+
$1.2816
1000+
$1.2096
10000+
$1.1376
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | STMicroelectronics |
|---|---|
| Series | STripFET™ |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 3000 |
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 33A (Tc) |
| Rds On (Max) @ Id, Vgs | 27mOhm @ 4.5A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 8nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 420pF @ 30V |
| Power - Max | 58W |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerVDFN |
| Supplier Device Package | PowerFlat™ (5x6) |
| Base Product Number | STL36 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
