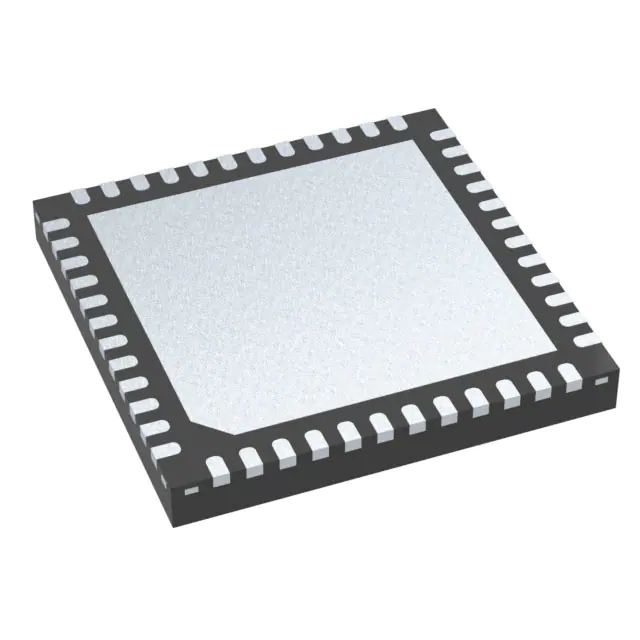

STM32WB55RGV7TR
STM32WB55RGV7TR
- Available: 6000
- Manufacturer: STMicroelectronics
- Part Number: STM32WB55RGV7TR
- Detailed Description: IC RF TxRx + MCU 802.15.4, Bluetooth Bluetooth v5.3, Thread, Zigbee® 2.405GHz ~ 2.48GHz 68-VFQFN Exposed Pad
- Category: RF/IF and RFID | RF Transceiver ICs
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$13.0440
10+
$12.2614
100+
$11.6092
1000+
$10.9570
10000+
$10.3048
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | STMicroelectronics |
|---|---|
| Series | STM32WB |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 2500 |
| Product Status | Active |
| Type | TxRx + MCU |
| RF Family/Standard | 802.15.4, Bluetooth |
| Protocol | Bluetooth v5.3, Thread, Zigbee® |
| Modulation | GFSK |
| Frequency | 2.405GHz ~ 2.48GHz |
| Data Rate (Max) | 2Mbps |
| Power - Output | 6dBm |
| Sensitivity | -100dBm |
| Memory Size | 1MB Flash, 256kB SRAM |
| Serial Interfaces | ADC, I²C, SPI, UART, USART, USB |
| GPIO | 49 |
| Voltage - Supply | 1.71V ~ 3.6V |
| Current - Receiving | 4.5mA ~ 7.9mA |
| Current - Transmitting | 5.2mA ~ 12.7mA |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 68-VFQFN Exposed Pad |
| Supplier Device Package | 68-VFQFPN (8x8) |
| Base Product Number | STM32 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 5A992C |
| HTSUS | 8542.31.0001 |
How to Buy
| Process | Submit enquiry>Confirm offer>Send order>Complete payment >Delivery |
|---|---|
| Payment | TT, PayPal, Escrow, more please consult our account manager. |
| Delivery period | For in-stock parts, orders are estimated to ship out in 3 days. |
| Shipping option | We provide DHL, FedEx, UPS for international transportation. |
| Shipping tracking | Orders are shipped and we will notify you of the tracking number by email. |
| Warranty | Cytech Systems provide 6 months quality risk guarantee. If you find that the quality of the product does not match the original technical parameters during the use of the product, we will assume responsibility for the quality risk within 6 months. This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by customer to follow instructions, product modification, negligent or improper operation |
