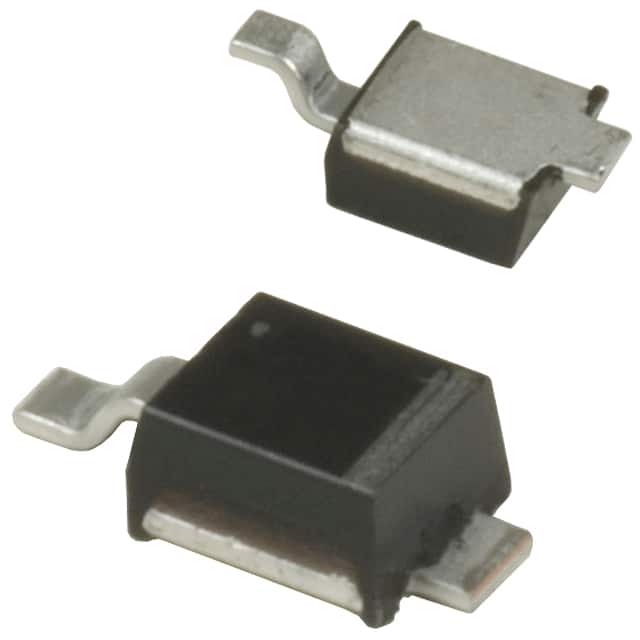

STPS0520M
STPS0520M
- Available: 0
- Manufacturer: STMicroelectronics
- Part Number: STPS0520M
- Detailed Description: Diode Schottky 20 V 500mA Surface Mount STmite
- Category: Discrete Semiconductor Products | Diodes - Rectifiers - Single
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.5760
10+
$0.5414
100+
$0.5126
1000+
$0.4838
10000+
$0.4550
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | STMicroelectronics |
|---|---|
| Series | - |
| Package | - |
| Standard Package | 12000 |
| Product Status | Obsolete |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
| Current - Average Rectified (Io) | 500mA |
| Voltage - Forward (Vf) (Max) @ If | 385 mV @ 500 mA |
| Speed | Fast Recovery =< 500ns | > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 50 µA @ 20 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | DO-216AA |
| Supplier Device Package | STmite |
| Operating Temperature - Junction | 150°C (Max) |
| Base Product Number | STPS0520 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0070 |
