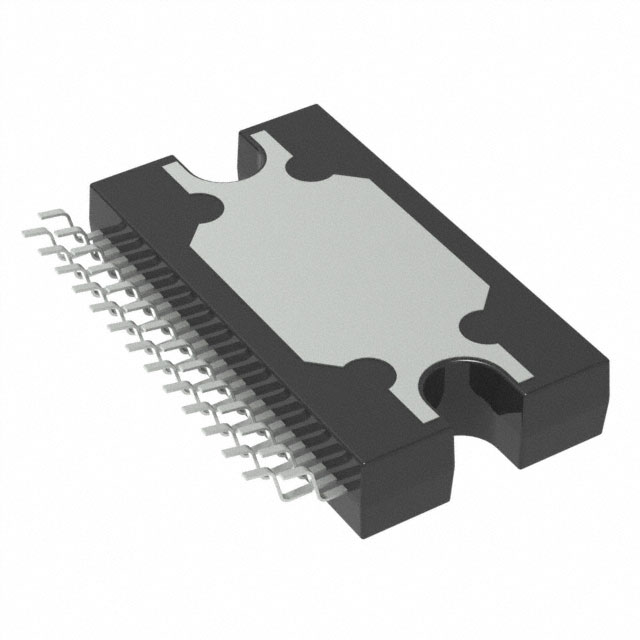

TDF8546AJS/N1ZS
TDF8546AJS/N1ZS
- Available: 456
- Manufacturer: NXP USA Inc.
- Part Number: TDF8546AJS/N1ZS
- Detailed Description: Amplifier IC 4-Channel (Quad) Class AB 27-DBSMSP
- Category: Integrated Circuits (ICs) | Linear - Amplifiers - Audio Amplifiers
- RoHS Status： RoHS non-compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$12.7890
10+
$12.0217
100+
$11.3822
1000+
$10.7428
10000+
$10.1033
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | NXP USA Inc. |
|---|---|
| Series | - |
| Package | - |
| Standard Package | 456 |
| Product Status | Active |
| Type | Class AB |
| Output Type | 4-Channel (Quad) |
| Max Output Power x Channels @ Load | 25W x 4 @ 4Ohm |
| Voltage - Supply | 6V ~ 18V |
| Features | Depop | Short-Circuit and Thermal Protection |
| Mounting Type | Surface Mount |
| Operating Temperature | - |
| Supplier Device Package | 27-DBSMSP |
| Package / Case | 27-PowerSMD Module |
| Base Product Number | TDF8546 |
Environmental & Export
| RoHS Status | RoHS non-compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
