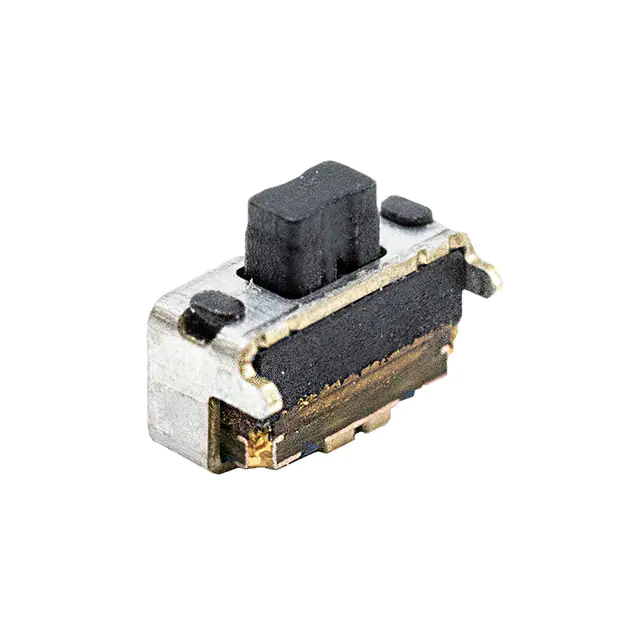

TL6340AF160Q
TL6340AF160Q
- Available: 2000
- Manufacturer: E-Switch
- Part Number: TL6340AF160Q
- Detailed Description: Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
- Category: Switches | Tactile Switches
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.6120
10+
$0.5753
100+
$0.5447
1000+
$0.5141
10000+
$0.4835
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | E-Switch |
|---|---|
| Series | TL6340 |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 3000 |
| Product Status | Active |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.02A @ 12VDC |
| Actuator Type | Rectangular Button |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Height off PCB, Vertical | - |
| Actuator Length, Right Angle | 2.90mm |
| Actuator Orientation | Side Actuated |
| Termination Style | SMD (SMT) Tab |
| Outline | 3.85mm x 1.95mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Operating Force | 160gf |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Actuator Material | - |
| Switch Travel | 0.20mm |
| Mechanical Life | 200,000 Cycles |
| Base Product Number | TL6340 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8536.50.9031 |
