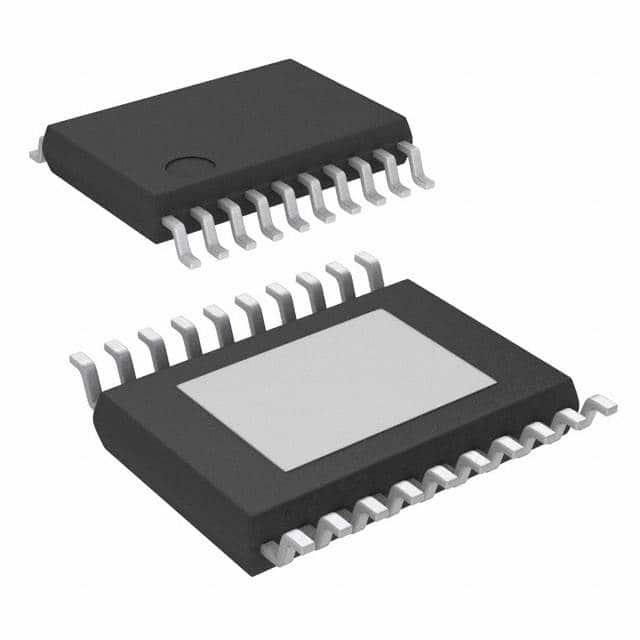

TPIC9201PWPR
TPIC9201PWPR
- Available: 0
- Manufacturer: Texas Instruments
- Part Number: TPIC9201PWPR
- Detailed Description: Power Switch/Driver 1:8 N-Channel 150mA 20-HTSSOP
- Category: Integrated Circuits (ICs) | PMIC - Power Distribution Switches, Load Drivers
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.8946
10+
$0.8409
100+
$0.7962
1000+
$0.7515
10000+
$0.7067
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Texas Instruments |
|---|---|
| Series | - |
| Package | - |
| Standard Package | 2000 |
| Product Status | Not For New Designs |
| Switch Type | General Purpose |
| Number of Outputs | 8 |
| Ratio - Input:Output | 1:8 |
| Output Configuration | Low Side |
| Output Type | N-Channel |
| Interface | Serial |
| Voltage - Load | 7V ~ 18V |
| Voltage - Supply (Vcc/Vdd) | 0V ~ 5.25V |
| Current - Output (Max) | 150mA |
| Rds On (Typ) | - |
| Input Type | Non-Inverting |
| Features | - |
| Fault Protection | Current Limiting (Fixed) | Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-HTSSOP |
| Package / Case | 20-PowerTSSOP (0.173" | 4.40mm Width) |
| Base Product Number | TPIC9201 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
