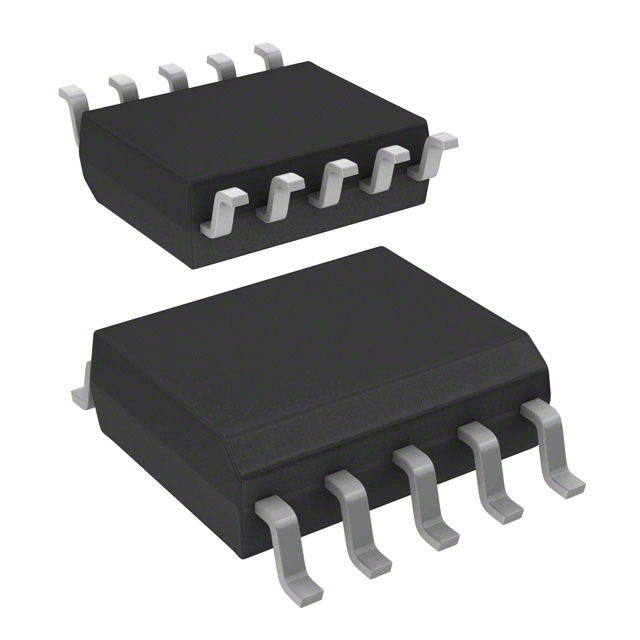

VIPER013XS
VIPER013XS
- Available: 10000
- Manufacturer: STMicroelectronics
- Part Number: VIPER013XS
- Detailed Description: Converter Offline Buck, Buck-Boost, Flyback Topology 30kHz 10-SSOP
- Category: Integrated Circuits (ICs) | PMIC - AC DC Converters, Offline Switches
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.6205
10+
$0.5833
100+
$0.5523
1000+
$0.5212
10000+
$0.4902
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | STMicroelectronics |
|---|---|
| Series | - |
| Package | Tube |
| Standard Package | 2000 |
| Product Status | Active |
| Output Isolation | Either |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 800V |
| Topology | Buck, Buck-Boost, Flyback |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 30V |
| Duty Cycle | 80% |
| Frequency - Switching | 30kHz |
| Power (Watts) | 7 W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 10-SOP (0.154", 3.90mm Width) |
| Supplier Device Package | 10-SSOP |
| Mounting Type | Surface Mount |
| Base Product Number | VIPER013 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
