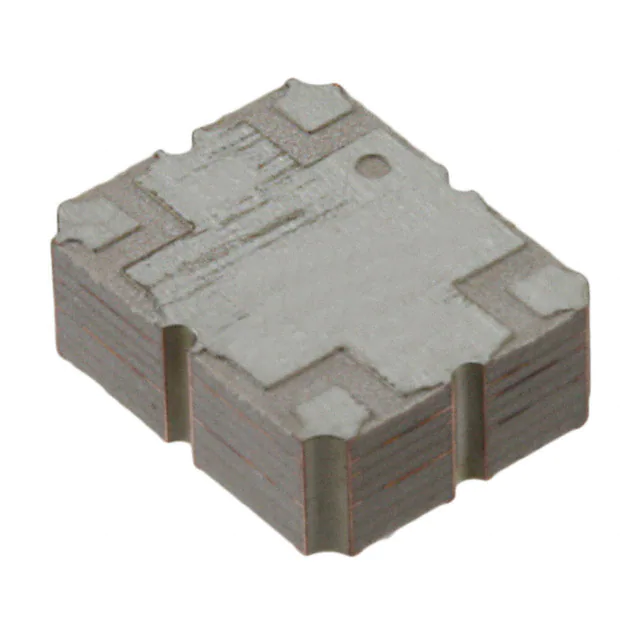

X3C09P2-30S
X3C09P2-30S
- Available: 0
- Manufacturer: TTM Technologies, Inc.
- Part Number: X3C09P2-30S
- Detailed Description: RF Directional Coupler AMPS, CDMA, WCDMA 800MHz ~ 1GHz 30.2dB 225W 2520 (6450 Metric)
- Category: RF/IF and RFID | RF Directional Coupler
- RoHS Status： RoHS Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$7.4640
10+
$7.0162
100+
$6.6430
1000+
$6.2698
10000+
$5.8966
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | TTM Technologies, Inc. |
|---|---|
| Series | Xinger III® |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 2000 |
| Product Status | Active |
| Coupler Type | Standard |
| Frequency | 800MHz ~ 1GHz |
| Coupling Factor | 30.2dB |
| Applications | AMPS, CDMA, WCDMA |
| Insertion Loss | 0.1dB |
| Power - Max | 225W |
| Isolation | - |
| Return Loss | 24.9dB |
| Package / Case | 2520 (6450 Metric) |
| Supplier Device Package | 4-SMD |
| Base Product Number | X3C09P2 |
Environmental & Export
| RoHS Status | RoHS Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8517.79.0000 |
