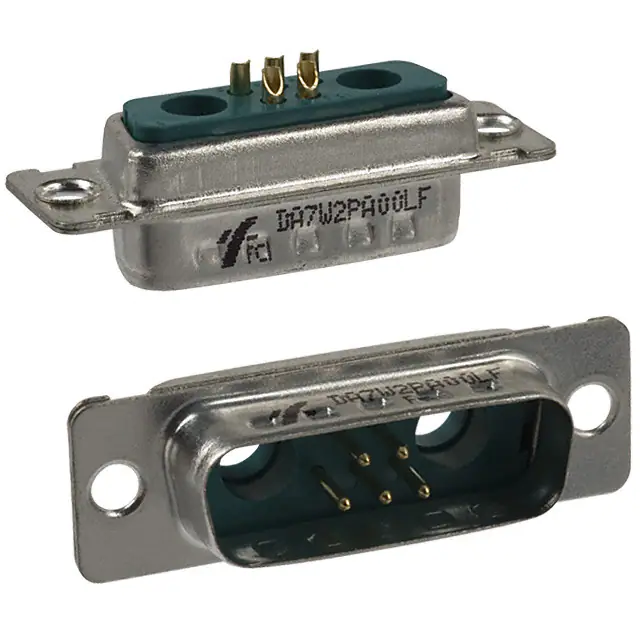

DA7W2PA00LF
DA7W2PA00LF
- Available: 75
- Manufacturer: Amphenol ICC (FCI)
- Part Number: DA7W2PA00LF
- Detailed Description: 7 (5 + 2 Power) Position D-Sub, Combo Plug, Male Pins Connector
- Category: Connectors, Interconnects | D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
- RoHS Status： RoHS Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$5.8560
10+
$5.5046
100+
$5.2118
1000+
$4.9190
10000+
$4.6262
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Amphenol ICC (FCI) |
|---|---|
| Series | DW |
| Package | Tray |
| Standard Package | 25 |
| Product Status | Active |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Number of Positions | 7 (5 + 2 Power) |
| Number of Rows | 2 |
| Mounting Type | Free Hanging (In-Line) |
| Shell Size, Connector Layout | 2 (DA, A) - 7W2 |
| Contact Type | Signal and Power (Not Included) |
| Flange Feature | Housing/Shell (Unthreaded) |
| Termination | Solder Cup |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 7.5A per Contact |
| Backset Spacing | - |
| Features | Grounding Indents |
| Voltage Rating | 300V |
| Color | - |
| Contact Form | - |
| Dielectric Material | Thermoplastic |
| Wire Gauge | - |
| Contact Material | Brass |
| Operating Temperature | -55°C ~ 125°C |
| Base Product Number | DA7W2 |
Environmental & Export
| RoHS Status | RoHS Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8536.69.8000 |
