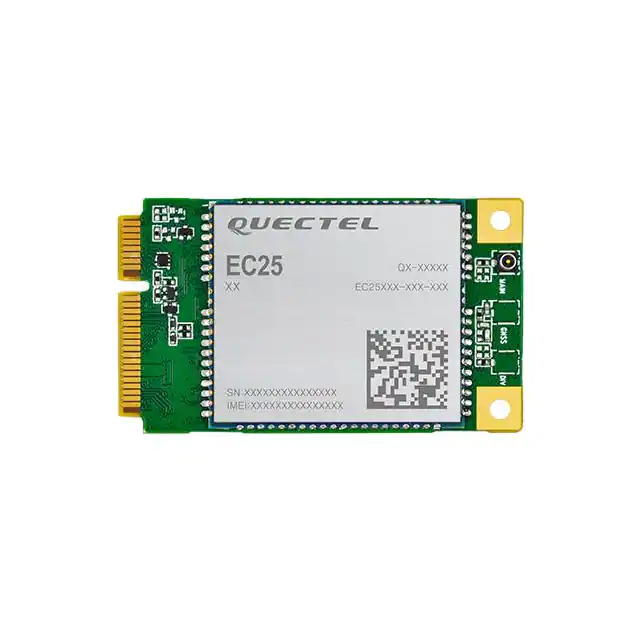

EC25JFA-MINIPCIE
EC25JFA-MINIPCIE
- Available: 0
- Manufacturer: Quectel
- Part Number: EC25JFA-MINIPCIE
- Detailed Description: Cellular, Navigation BeiDou, Galileo, GLONASS, GPS, GNSS, LTE, UMTS, WCDMA Transceiver Module Antenna Not Included Card Edge
- Category: RF/IF and RFID | RF Transceiver Modules and Modems
- RoHS Status： RoHS Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$93.0960
10+
$87.5102
100+
$82.8554
1000+
$78.2006
10000+
$73.5458
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Quectel |
|---|---|
| Series | - |
| Package | Tray |
| Standard Package | 100 |
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation |
| Protocol | BeiDou, Galileo, GLONASS, GPS, GNSS, LTE, UMTS, WCDMA |
| Modulation | - |
| Frequency | - |
| Data Rate | 150Mbps |
| Power - Output | - |
| Sensitivity | - |
| Serial Interfaces | I²C, PCM, UART, USB |
| Antenna Type | Antenna Not Included |
| Utilized IC / Part | - |
| Memory Size | - |
| Voltage - Supply | 3V ~ 3.6V |
| Current - Receiving | 31.5mA |
| Current - Transmitting | 31.5mA |
| Mounting Type | Card Edge |
| Operating Temperature | -35°C ~ 75°C |
| Package / Case | Module |
| Base Product Number | EC25 |
Environmental & Export
| RoHS Status | RoHS Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | |
| ECCN | 5A992C SC |
| HTSUS | 8517.62.0090 |
