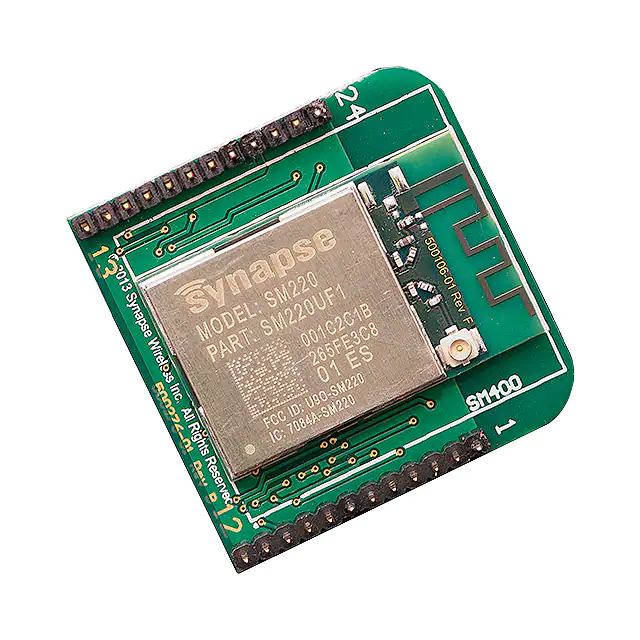

RF220UF1
RF220UF1
- Available: 0
- Manufacturer: Synapse Wireless
- Part Number: RF220UF1
- Detailed Description: 802.15.4 Transceiver Module 2.4GHz Integrated, Chip + U.FL Through Hole
- Category: RF/IF and RFID | RF Transceiver Modules and Modems
- RoHS Status： RoHS Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$76.5840
10+
$71.9890
100+
$68.1598
1000+
$64.3306
10000+
$60.5014
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Synapse Wireless |
|---|---|
| Series | SNAP® RF Engine® |
| Package | Tray |
| Standard Package | 1 |
| Product Status | Active |
| RF Family/Standard | 802.15.4 |
| Protocol | - |
| Modulation | - |
| Frequency | 2.4GHz |
| Data Rate | 2Mbps |
| Power - Output | 20dBm |
| Sensitivity | -103dBm |
| Serial Interfaces | SPI, UART |
| Antenna Type | Integrated, Chip + U.FL |
| Utilized IC / Part | - |
| Memory Size | 128kB Flash, 58kB RAM |
| Voltage - Supply | 2V ~ 3.6V |
| Current - Receiving | 22mA |
| Current - Transmitting | 150mA |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 24-DIP Module |
| Base Product Number | RF220 |
Environmental & Export
| RoHS Status | RoHS Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | |
| ECCN | 5A992C |
| HTSUS | 8517.62.0090 |
