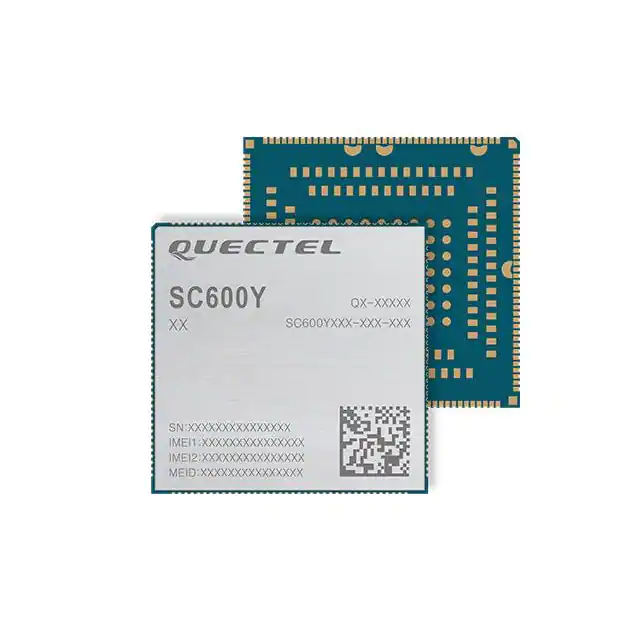

SC600YNAPA-E53-UGADA
SC600YNAPA-E53-UGADA
- Available: 50
- Manufacturer: Quectel
- Part Number: SC600YNAPA-E53-UGADA
- Detailed Description: Bluetooth, Navigation, WiFi 802.11a/b/g/n/ac, Bluetooth v2.1 + EDR, Bluetooth v3.0, Bluetooth v4.1, Bluetooth v4.2, BeiDou, GLONASS, GPS, GNSS Transceiver Module 850MHz, 900MHz, 1.8GHz, 1.9GHz Antenna Not Included Surface Mount
- Category: RF/IF and RFID | RF Transceiver Modules and Modems
- RoHS Status： RoHS Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$218.5920
10+
$205.4765
100+
$194.5469
1000+
$183.6173
10000+
$172.6877
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Quectel |
|---|---|
| Series | - |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 1000 |
| Product Status | Active |
| RF Family/Standard | Bluetooth, Navigation, WiFi |
| Protocol | 802.11a/b/g/n/ac, Bluetooth v2.1 + EDR, Bluetooth v3.0, Bluetooth v4.1, Bluetooth v4.2, BeiDou, GLONASS, GPS, GNSS |
| Modulation | - |
| Frequency | 850MHz, 900MHz, 1.8GHz, 1.9GHz |
| Data Rate | 300Mbps |
| Power - Output | 33dBm |
| Sensitivity | - |
| Serial Interfaces | ADC, GPIO, I²C, I²S, SDIO, UART, SPI, USB |
| Antenna Type | Antenna Not Included |
| Utilized IC / Part | - |
| Memory Size | - |
| Voltage - Supply | 3.55V ~ 4.4V |
| Current - Receiving | - |
| Current - Transmitting | - |
| Mounting Type | Surface Mount |
| Operating Temperature | -35°C ~ 65°C |
| Package / Case | Module |
| Base Product Number | SC600 |
Environmental & Export
| RoHS Status | RoHS Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | |
| ECCN | 5A992C 23 |
| HTSUS | 8517.62.0090 |
How to Buy.
| Process | Submit enquiry>Confirm offer>Send order>Complete payment >Delivery |
|---|---|
| Payment | TT, PayPal, Escrow, more please consult our account manager. |
| Delivery period | For in-stock parts, orders are estimated to ship out in 3 days. |
| Shipping option | We provide DHL, FedEx, UPS for international transportation. |
| Shipping tracking | Orders are shipped and we will notify you of the tracking number by email. |
| Warranty | Cytech Systems provide 6 months quality risk guarantee. If you find that the quality of the product does not match the original technical parameters during the use of the product, we will assume responsibility for the quality risk within 6 months. This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by customer to follow instructions, product modification, negligent or improper operation. |
