STGB7H60DF
STGB7H60DF
- Available: 2000
- Manufacturer: STMicroelectronics
- Part Number: STGB7H60DF

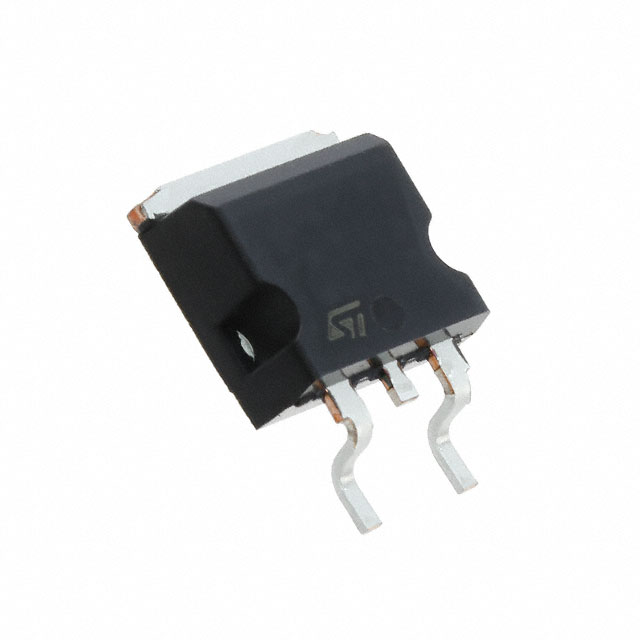

- Detailed Description: IGBT Trench Field Stop 600 V 14 A 88 W Surface Mount D²PAK (TO-263)
- Category: Discrete Semiconductor Products | Transistors - IGBTs - Single
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.8059
10+
$0.7576
100+
$0.7173
1000+
$0.6770
10000+
$0.6367
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | STMicroelectronics |
|---|---|
| Series | - |
| Package | - |
| Standard Package | 2000 |
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 14 A |
| Current - Collector Pulsed (Icm) | 28 A |
| Vce(on) (Max) @ Vge, Ic | 1.95V @ 15V | 7A |
| Power - Max | 88 W |
| Switching Energy | 99µJ (on) | 100µJ (off) |
| Input Type | Standard |
| Gate Charge | 46 nC |
| Td (on/off) @ 25°C | 30ns/160ns |
| Test Condition | 400V | 7A | 47Ohm | 15V |
| Reverse Recovery Time (trr) | 136 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3 | D²Pak (2 Leads + Tab) | TO-263AB |
| Supplier Device Package | D²PAK (TO-263) |
| Base Product Number | STGB7 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
