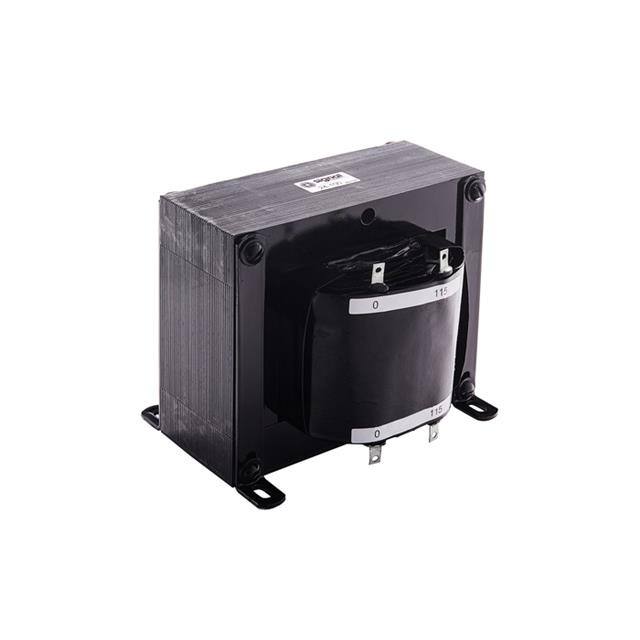

24-100
24-100
- Available: 0
- Manufacturer: Signal Transformer
- Part Number: 24-100
- Detailed Description: PWR XFMR LAMINATED 2400VA CHAS
- Category: Transformers | Power Transformers
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$658.8360
10+
$619.3058
100+
$586.3640
1000+
$553.4222
10000+
$520.4804
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Signal Transformer |
|---|---|
| Series | - |
| Package | Box |
| Standard Package | 1 |
| Product Status | Active |
| Type | Laminated Core |
| Voltage - Primary | 105V, 115V, 125V, 230V |
| Voltage - Secondary (Full Load) | Parallel 12V, Series 24V |
| Current - Output (Max) | Parallel 200A, Series 100A |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Center Tap | Yes |
| Power - Max | 2400VA |
| Mounting Type | Chassis Mount |
| Termination Style | Solder, Quick Connect |
| Size / Dimension | 190.50mm L x 177.80mm W |
| Height - Seated (Max) | 162.00mm |
| Voltage - Isolation | 1500Vrms |
| Weight | 43 lbs (19.5 kg) |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.32.0000 |
