25114 BK005
25114 BK005
- Available: 0
- Manufacturer: Alpha Wire
- Part Number: 25114 BK005

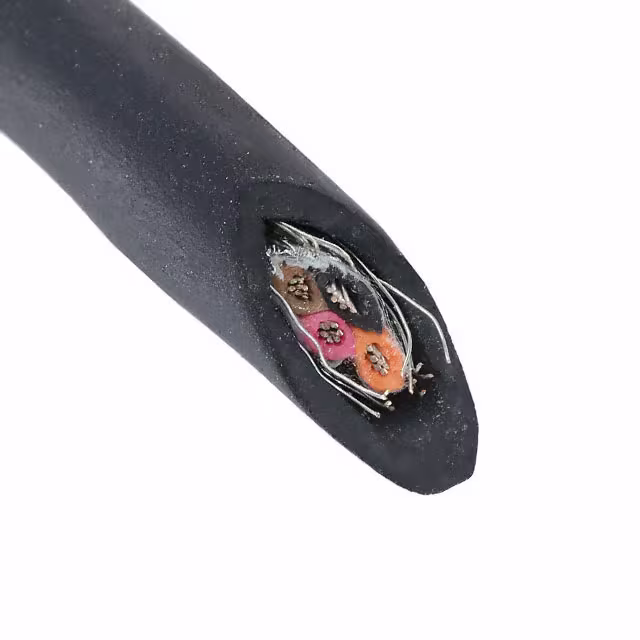

- Detailed Description: 4 Conductor Multi-Conductor Cable Black 24 AWG Foil, Braid 100.0' (30.5m)
- Category: Cables, Wires | Multiple Conductor Cables
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$453.0120
10+
$425.8313
100+
$403.1807
1000+
$380.5301
10000+
$357.8795
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Alpha Wire |
|---|---|
| Series | Xtra-Guard® 2 |
| Package | Spool |
| Standard Package | 1 |
| Product Status | Active |
| Cable Type | Multi-Conductor |
| Number of Conductors | 4 |
| Wire Gauge | 24 AWG |
| Conductor Strand | 7/32 |
| Conductor Material | Copper, Tinned |
| Jacket (Insulation) Material | Polyurethane (PU) |
| Jacket (Insulation) Diameter | 0.203" (5.16mm) |
| Shield Type | Foil, Braid |
| Length | 100.0' (30.5m) |
| Jacket Color | Black |
| Ratings | ISO 10993, UL Style 20668 |
| Features | Biological Compatibility, Drain Wire, Rip Cord |
| Voltage | 300 V |
| Operating Temperature | -30°C ~ 90°C |
| Usage | - |
| Jacket (Insulation) Thickness | 0.0320" (0.813mm) |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Shield Material | Suprashield®; Copper, Tinned |
| Shield Coverage | 100%, 70% |
| Base Product Number | 25114 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8544.49.3080 |
