7101MD9AV2QE
7101MD9AV2QE
- Available: 1000
- Manufacturer: C&K
- Part Number: 7101MD9AV2QE

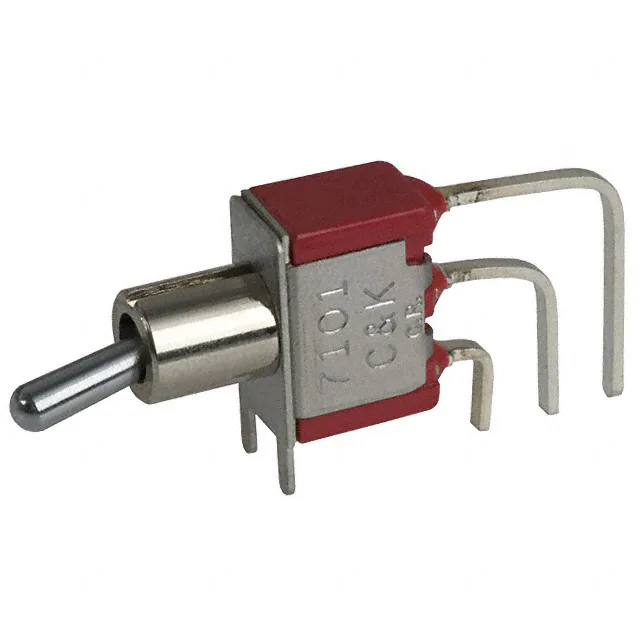

- Detailed Description: Toggle Switch SPDT Through Hole, Right Angle, Vertical
- Category: Switches | Toggle Switches
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$10.9320
10+
$10.2761
100+
$9.7295
1000+
$9.1829
10000+
$8.6363
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | C&K |
|---|---|
| Series | 7000 |
| Package | Tray |
| Standard Package | 40 |
| Product Status | Active |
| Mounting Type | Through Hole, Right Angle, Vertical |
| Circuit | SPDT |
| Switch Function | On-On |
| Current Rating (Amps) | 5A (AC/DC) |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 28 V |
| Actuator Type | Standard Round |
| Actuator Length | 6.86mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Termination Style | PC Pin |
| Panel Cutout Dimensions | - |
| Bushing Thread | Unthreaded |
| Ingress Protection | - |
| Features | Epoxy Sealed Terminals |
| Operating Temperature | -30°C ~ 85°C |
| Actuator Material | Brass, Chrome Plated |
| Electrical Life | 100,000 Cycles |
| Base Product Number | 7101MD |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8536.50.9065 |
