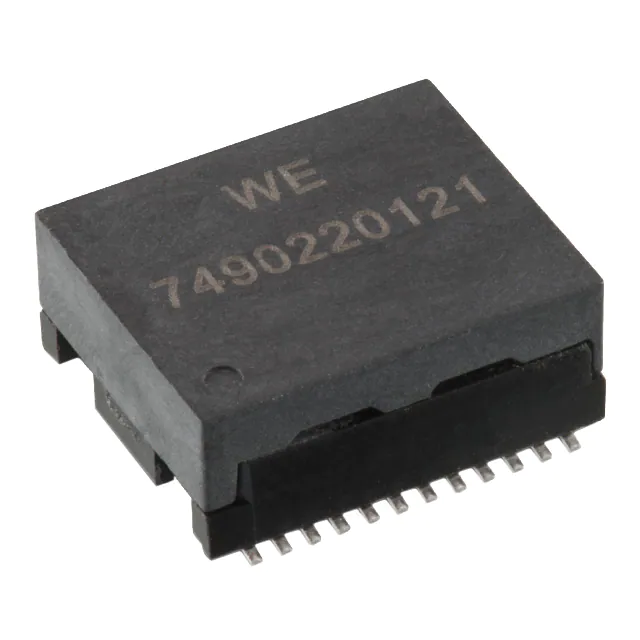

7490220121
7490220121
- Available: 960
- Manufacturer: Würth Elektronik
- Part Number: 7490220121
- Detailed Description: 350µH LAN 10/100/1000 Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
- Category: Transformers | Pulse Transformers
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$7.7640
10+
$7.2982
100+
$6.9100
1000+
$6.5218
10000+
$6.1336
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Würth Elektronik |
|---|---|
| Series | WE-LAN |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 320 |
| Product Status | Active |
| Transformer Type | LAN 10/100/1000 Base-T |
| Inductance | 350µH |
| ET (Volt-Time) | - |
| Turns Ratio - Primary:Secondary | 1CT:1CT Transmitter, 1CT:1CT Receiver |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.720" L x 0.579" W (18.29mm x 14.70mm) |
| Height - Seated (Max) | 0.283" (7.20mm) |
| Operating Temperature | -40°C ~ 85°C |
| Weight | - |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.31.2000 |
