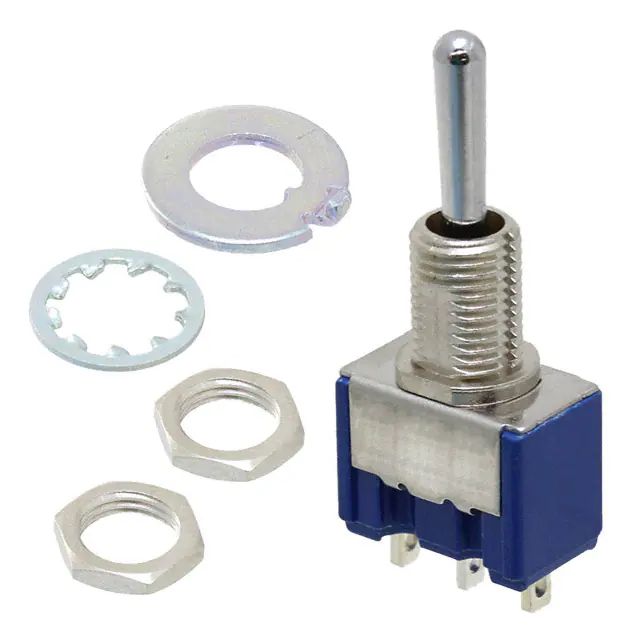

8A1021-Z
8A1021-Z
- Available: 0
- Manufacturer: Nidec Copal Electronics
- Part Number: 8A1021-Z
- Detailed Description: Toggle Switch SPDT Panel Mount
- Category: Switches | Toggle Switches
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$7.1404
10+
$6.7120
100+
$6.3550
1000+
$5.9979
10000+
$5.6409
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Nidec Copal Electronics |
|---|---|
| Series | 8A |
| Package | Bulk |
| Standard Package | 25 |
| Product Status | Active |
| Mounting Type | Panel Mount |
| Circuit | SPDT |
| Switch Function | On-Off-On |
| Current Rating (Amps) | 6A (AC), 4A (DC) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
| Actuator Type | Standard Round |
| Actuator Length | 10.50mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Termination Style | Solder Lug |
| Panel Cutout Dimensions | Circular - 6.50mm Dia |
| Bushing Thread | 1/4-40 |
| Ingress Protection | - |
| Features | Sealed - Flux Protection |
| Operating Temperature | -30°C ~ 85°C |
| Actuator Material | - |
| Electrical Life | 50,000 Cycles |
| Base Product Number | 8A1021 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8536.50.9065 |
