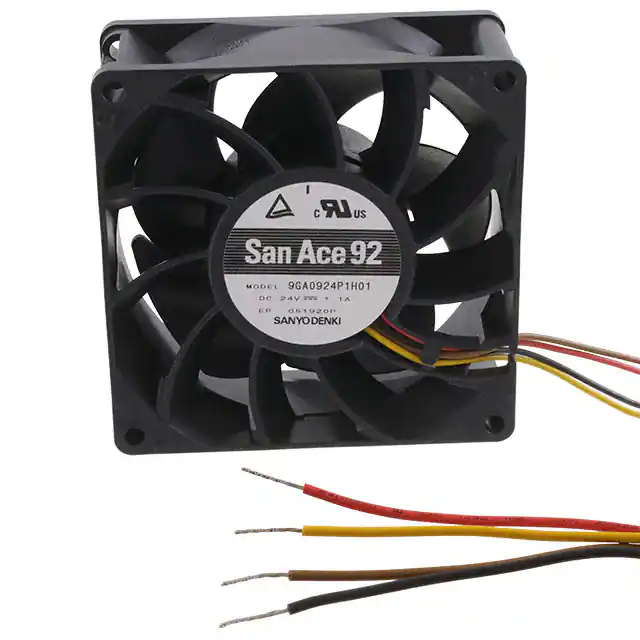

9GA0924P1H01
9GA0924P1H01
- Available: 0
- Manufacturer: Sanyo Denki America Inc.
- Part Number: 9GA0924P1H01
- Detailed Description: Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Ball 141.0 CFM (3.95m³/min) 4 Wire Leads
- Category: Fans, Thermal Management | Fans - DC Brushless Fans (BLDC)
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$38.8920
10+
$36.5585
100+
$34.6139
1000+
$32.6693
10000+
$30.7247
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Sanyo Denki America Inc. |
|---|---|
| Series | San Ace 92 |
| Package | Box |
| Standard Package | 28 |
| Product Status | Active |
| Voltage - Rated | 24VDC |
| Size / Dimension | Square - 92mm L x 92mm H |
| Width | 38.00mm |
| Air Flow | 141.0 CFM (3.95m³/min) |
| Static Pressure | 2.010 in H2O (500.7 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | PWM Control, Speed Sensor (Tach) |
| Noise | 63.0dB(A) |
| Power (Watts) | 26.4 W |
| RPM | 9700 RPM |
| Termination | 4 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CSA, TUV, UL |
| Weight | 0.529 lb (240.00 g) |
| Current Rating (Amps) | 1.10A |
| Voltage Range | 20.4 ~ 27.6VDC |
| Material - Frame | Plastic |
| Material - Blade | Plastic |
| Lifetime @ Temp. | Varies Based on Temperature |
| Base Product Number | 9GA0924 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
