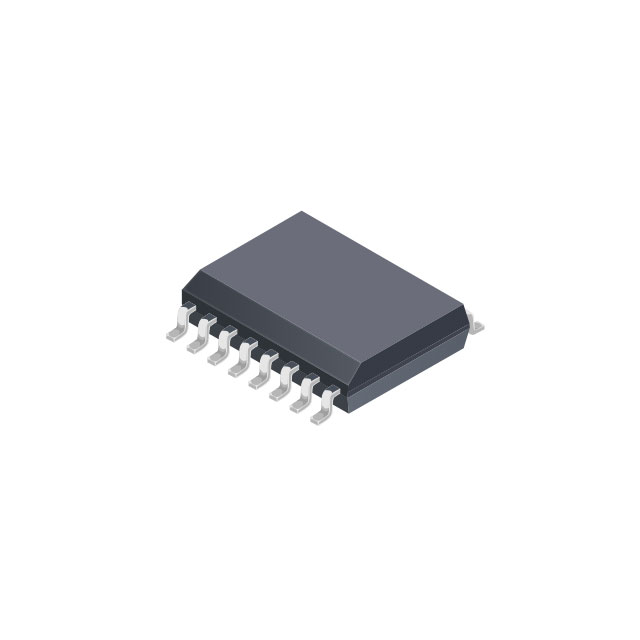

ACS720KLATR-15AB-T
ACS720KLATR-15AB-T
- Available: 3000
- Manufacturer: Allegro MicroSystems
- Part Number: ACS720KLATR-15AB-T
- Detailed Description: Current Sensor 15A 1 Channel Hall Effect, Open Loop Bidirectional 16-SOIC (0.295", 7.50mm Width)
- Category: Sensors, Transducers | Current Sensors
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$8.5320
10+
$8.0201
100+
$7.5935
1000+
$7.1669
10000+
$6.7403
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Allegro MicroSystems |
|---|---|
| Series | ACS720 |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 1000 |
| Product Status | Active |
| For Measuring | AC/DC |
| Sensor Type | Hall Effect, Open Loop |
| Current - Sensing | 15A |
| Number of Channels | 1 |
| Output | Ratiometric, Current |
| Sensitivity | 90mV/A |
| Frequency | 120kHz |
| Linearity | ±0.75% |
| Accuracy | ±1.6% |
| Voltage - Supply | 4.5V ~ 5.5V |
| Response Time | 4µs (Typ) |
| Current - Supply (Max) | 16mA |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Bidirectional |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295, 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | ACS720 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
How to Buy
| Process | Submit enquiry>Confirm offer>Send order>Complete payment >Delivery |
|---|---|
| Payment | TT, PayPal, Escrow, more please consult our account manager. |
| Delivery period | For in-stock parts, orders are estimated to ship out in 3 days. |
| Shipping option | We provide DHL, FedEx, UPS for international transportation. |
| Shipping tracking | Orders are shipped and we will notify you of the tracking number by email. |
| Warranty | Cytech Systems provide 6 months quality risk guarantee. If you find that the quality of the product does not match the original technical parameters during the use of the product, we will assume responsibility for the quality risk within 6 months. This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by customer to follow instructions, product modification, negligent or improper operation |
