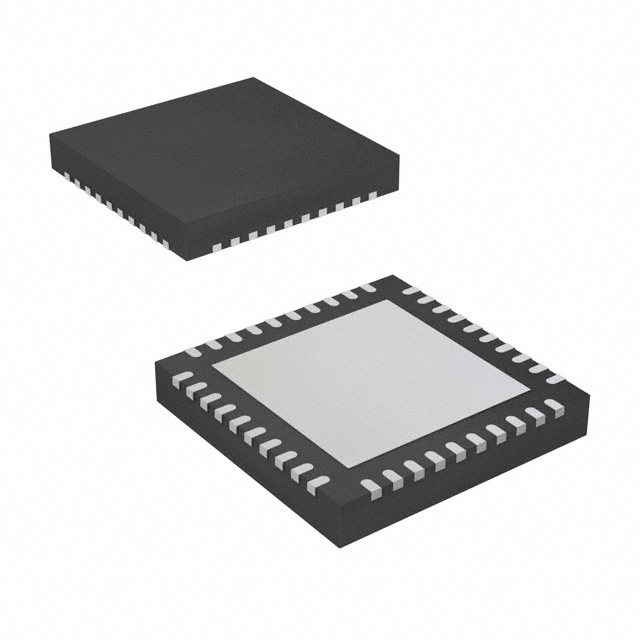

ADF7030-1BCPZN
ADF7030-1BCPZN
- Available: 5
- Manufacturer: Analog Devices Inc.
- Part Number: ADF7030-1BCPZN
- Detailed Description: IC RF TxRx + MCU 802.15.4 169MHz, 426MHz ~ 470MHz, 863MHz ~ 960MHz 40-WFQFN Exposed Pad, CSP
- Category: RF/IF and RFID | RF Transceiver ICs
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$7.8600
10+
$7.3884
100+
$6.9954
1000+
$6.6024
10000+
$6.2094
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Analog Devices Inc. |
|---|---|
| Series | - |
| Package | Tray |
| Standard Package | 1 |
| Product Status | Active |
| Type | TxRx + MCU |
| RF Family/Standard | 802.15.4 |
| Protocol | - |
| Modulation | 2FSK, 2GFSK, 4FSK, 4GFSK |
| Frequency | 169MHz, 426MHz ~ 470MHz, 863MHz ~ 960MHz |
| Data Rate (Max) | 360kbps |
| Power - Output | 17dBm |
| Sensitivity | -134dBm |
| Memory Size | - |
| Serial Interfaces | SPI |
| GPIO | 8 |
| Voltage - Supply | 2.2V ~ 3.6V |
| Current - Receiving | 25mA |
| Current - Transmitting | 65mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 40-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 40-LFCSP (6x6) |
| Base Product Number | ADF7030 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 5A992C |
| HTSUS | 8542.39.0001 |
