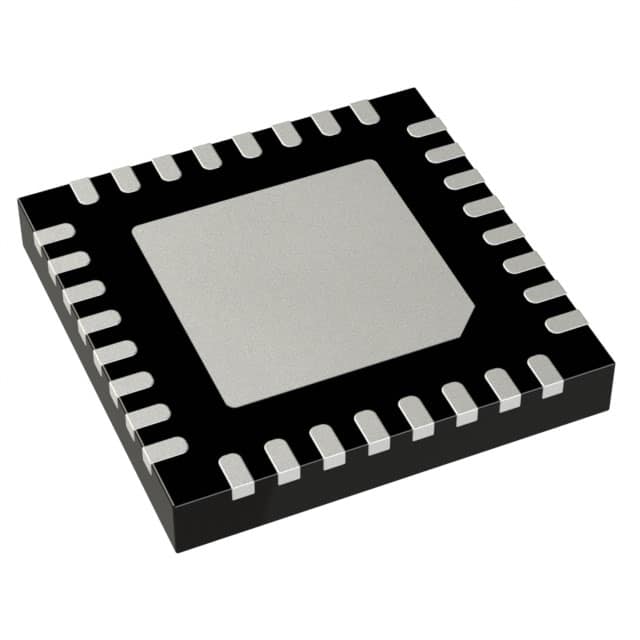

ADL5336ACPZ-R7
ADL5336ACPZ-R7
- Available: 7500
- Manufacturer: Analog Devices Inc.
- Part Number: ADL5336ACPZ-R7
- Detailed Description: RF Amplifier IC General Purpose 0Hz ~ 1GHz 32-LFCSP-VQ (5x5)
- Category: RF/IF and RFID | RF Amplifiers
- RoHS Status：
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.0000
10+
$0.0000
100+
$0.0000
1000+
$0.0000
10000+
$0.0000
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Analog Devices Inc. |
|---|---|
| Series | - |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 1500 |
| Product Status | Obsolete |
| Frequency | 0Hz ~ 1GHz |
| P1dB | 7dBm |
| Gain | 19.5dB |
| Noise Figure | 8dB |
| RF Type | General Purpose |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Supply | 80mA |
| Test Frequency | 350MHz |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 32-LFCSP-VQ (5x5) |
| Base Product Number | ADL5336 |
Environmental & Export
| RoHS Status | |
|---|---|
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
