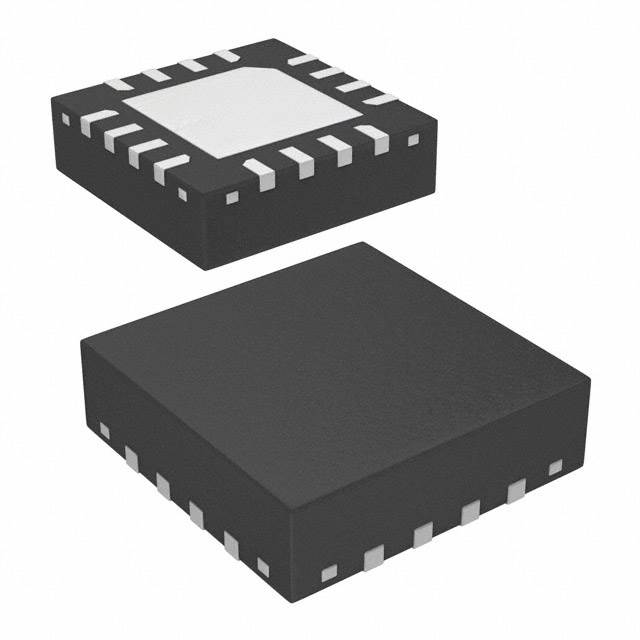

ADL8104ACPZN
ADL8104ACPZN
- Available: 3
- Manufacturer: Analog Devices Inc.
- Part Number: ADL8104ACPZN
- Detailed Description: RF Amplifier IC General Purpose 400MHz ~ 7.5GHz 16-LFCSP-WQ (3x3)
- Category: RF/IF and RFID | RF Amplifiers
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$172.1160
10+
$161.7890
100+
$153.1832
1000+
$144.5774
10000+
$135.9716
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Analog Devices Inc. |
|---|---|
| Series | - |
| Package | Strip |
| Standard Package | 1 |
| Product Status | Active |
| Frequency | 400MHz ~ 7.5GHz |
| P1dB | 20dBm |
| Gain | 13dB |
| Noise Figure | 4.5dB |
| RF Type | General Purpose |
| Voltage - Supply | 3V ~ 5.5V |
| Current - Supply | 150mA |
| Test Frequency | 600MHz ~ 6GHz |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP-WQ (3x3) |
| Base Product Number | ADL8104 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
