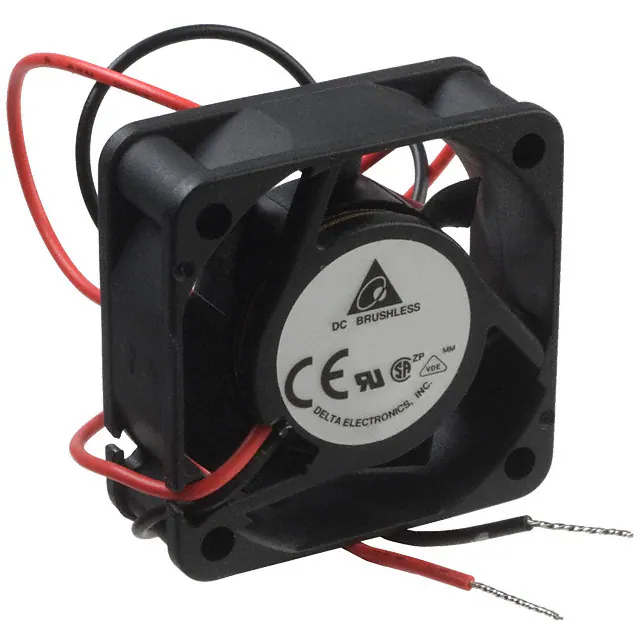

AFB0424SHB
AFB0424SHB
- Available: 0
- Manufacturer: Delta Electronics
- Part Number: AFB0424SHB
- Detailed Description: Fan Tubeaxial 24VDC Square - 40mm L x 40mm H Ball 14.8 CFM (0.414m³/min) 2 Wire Leads
- Category: Fans, Thermal Management | Fans - DC Brushless Fans (BLDC)
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$16.6920
10+
$15.6905
100+
$14.8559
1000+
$14.0213
10000+
$13.1867
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Delta Electronics |
|---|---|
| Series | AFB |
| Package | Box |
| Standard Package | 448 |
| Product Status | Active |
| Voltage - Rated | 24VDC |
| Size / Dimension | Square - 40mm L x 40mm H |
| Width | 15.00mm |
| Air Flow | 14.8 CFM (0.414m³/min) |
| Static Pressure | 0.601 in H2O (149.7 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection |
| Noise | 41.5dB(A) |
| Power (Watts) | 2.88 W |
| RPM | 11000 RPM |
| Termination | 2 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.057 lb (25.85 g) |
| Current Rating (Amps) | 0.120A |
| Voltage Range | 14 ~ 27.6VDC |
| Material - Frame | Plastic |
| Material - Blade | Plastic |
| Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Base Product Number | AFB0424 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
