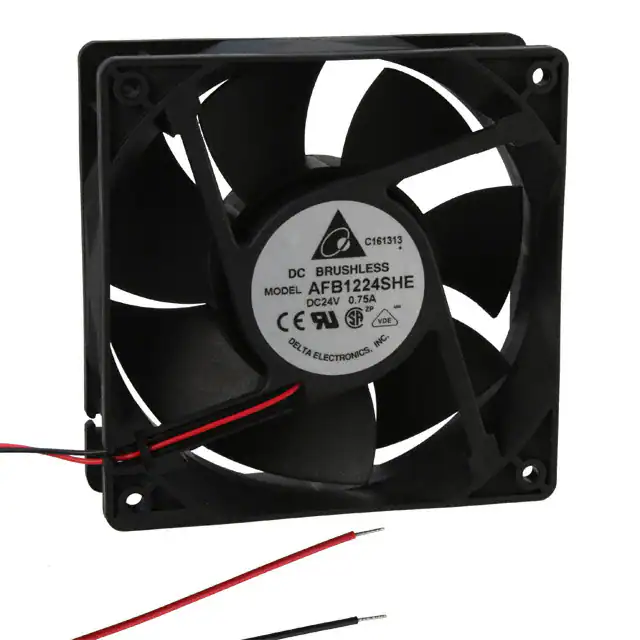

AFB1224SHE
AFB1224SHE
- Available: 500
- Manufacturer: Delta Electronics
- Part Number: AFB1224SHE
- Detailed Description: Fan Tubeaxial 24VDC Square - 120mm L x 120mm H Ball 151.9 CFM (4.25m³/min) 2 Wire Leads
- Category: Fans, Thermal Management | Fans - DC Brushless Fans (BLDC)
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$25.7280
10+
$24.1843
100+
$22.8979
1000+
$21.6115
10000+
$20.3251
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Delta Electronics |
|---|---|
| Series | AFB |
| Package | Bulk |
| Standard Package | 36 |
| Product Status | Active |
| Voltage - Rated | 24VDC |
| Size / Dimension | Square - 120mm L x 120mm H |
| Width | 38.00mm |
| Air Flow | 151.9 CFM (4.25m³/min) |
| Static Pressure | 0.571 in H2O (142.2 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection |
| Noise | 53.0dB(A) |
| Power (Watts) | 12 W |
| RPM | 3700 RPM |
| Termination | 2 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.565 lb (256.28 g) |
| Current Rating (Amps) | 0.500A |
| Voltage Range | 7 ~ 27.6VDC |
| Material - Frame | Plastic |
| Material - Blade | Plastic |
| Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Base Product Number | AFB1224 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
