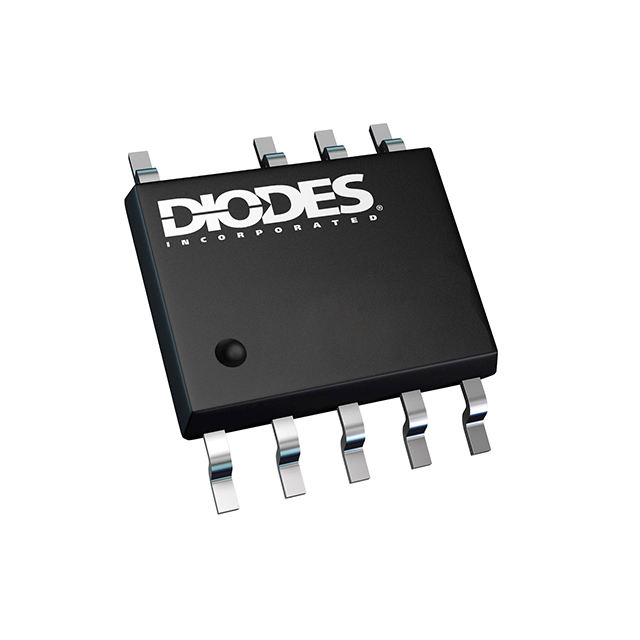

AP3118GSTR-G1
AP3118GSTR-G1
- Available: 0
- Manufacturer: Diodes Incorporated
- Part Number: AP3118GSTR-G1
- Detailed Description: Regulator Positive Output Step-Down DC-DC Controller IC 9-SSOP
- Category: Integrated Circuits (ICs) | PMIC - DC DC Switching Controllers
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.5670
10+
$0.5330
100+
$0.5046
1000+
$0.4763
10000+
$0.4479
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Diodes Incorporated |
|---|---|
| Series | - |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 4000 |
| Product Status | Active |
| Output Type | PWM |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | - |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 28V |
| Frequency - Switching | 120kHz |
| Duty Cycle (Max) | 80% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-SOP (0.154, 3.90mm Width), 9 Leads |
| Supplier Device Package | 9-SSOP |
| Base Product Number | AP3118 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
How to Buy
| Process | Submit enquiry>Confirm offer>Send order>Complete payment >Delivery |
|---|---|
| Payment | TT, PayPal, Escrow, more please consult our account manager. |
| Delivery period | For in-stock parts, orders are estimated to ship out in 3 days. |
| Shipping option | We provide DHL, FedEx, UPS for international transportation. |
| Shipping tracking | Orders are shipped and we will notify you of the tracking number by email. |
| Warranty | Cytech Systems provide 6 months quality risk guarantee. If you find that the quality of the product does not match the original technical parameters during the use of the product, we will assume responsibility for the quality risk within 6 months. This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by customer to follow instructions, product modification, negligent or improper operation |
