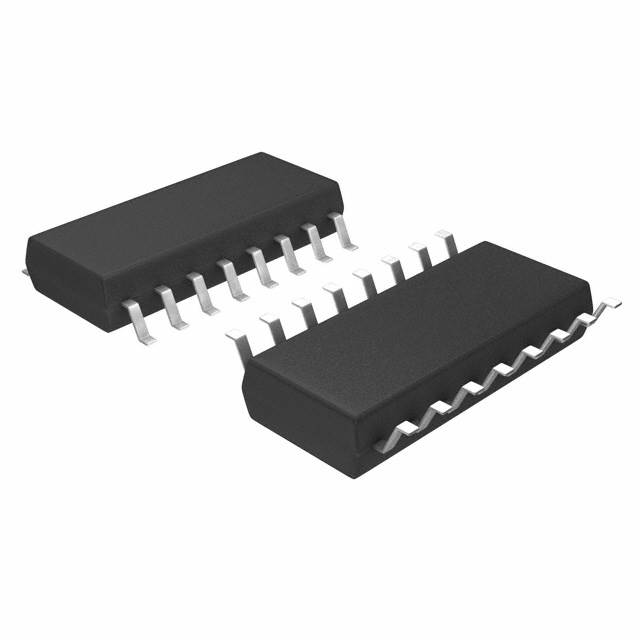

CD4536BNSR
CD4536BNSR
- Available: 6000
- Manufacturer: Texas Instruments
- Part Number: CD4536BNSR
- Detailed Description: Programmable Timer IC 5MHz 16-SO
- Category: Integrated Circuits (ICs) | Clock/Timing - Programmable Timers and Oscillators
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$1.0320
10+
$0.9701
100+
$0.9185
1000+
$0.8669
10000+
$0.8153
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Texas Instruments |
|---|---|
| Series | - |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 2000 |
| Product Status | Active |
| Type | Programmable Timer |
| Count | 2 ~ 2²⁴ |
| Frequency | 5MHz |
| Voltage - Supply | 3V ~ 18V |
| Current - Supply | 3 mA |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 16-SOIC (0.209, 5.30mm Width) |
| Supplier Device Package | 16-SO |
| Mounting Type | Surface Mount |
| Base Product Number | CD4536 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
