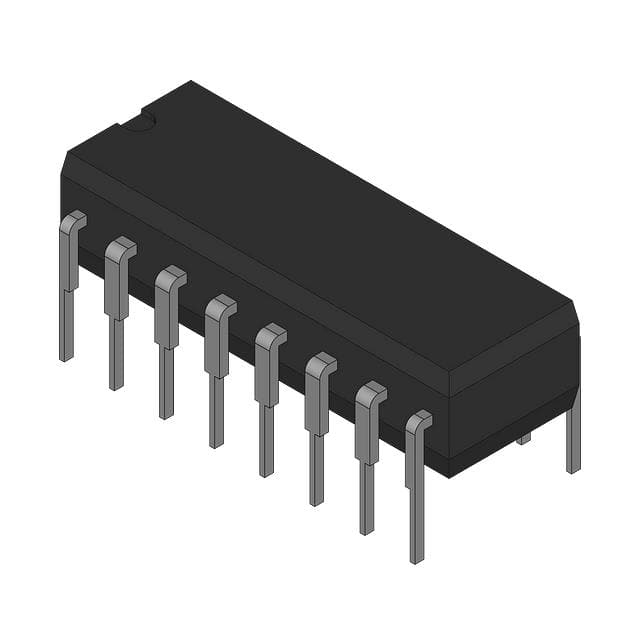

CD74HC4520E
CD74HC4520E
- Available: 75
- Manufacturer: Harris Corporation
- Part Number: CD74HC4520E
- Detailed Description: Counter IC Binary Counter 2 Element 4 Bit Positive, Negative 16-PDIP
- Category: Integrated Circuits (ICs) | Logic - Counters, Dividers
- RoHS Status： RoHS non-compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.8640
10+
$0.8122
100+
$0.7690
1000+
$0.7258
10000+
$0.6826
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Harris Corporation |
|---|---|
| Series | 74HC |
| Package | - |
| Standard Package | 25 |
| Product Status | Obsolete |
| Logic Type | Binary Counter |
| Direction | Up |
| Number of Elements | 2 |
| Number of Bits per Element | 4 |
| Reset | Asynchronous |
| Timing | Synchronous |
| Count Rate | 35 MHz |
| Trigger Type | Positive | Negative |
| Voltage - Supply | 2 V ~ 6 V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300" | 7.62mm) |
| Supplier Device Package | 16-PDIP |
| Base Product Number | 74HC4520 |
Environmental & Export
| RoHS Status | RoHS non-compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
