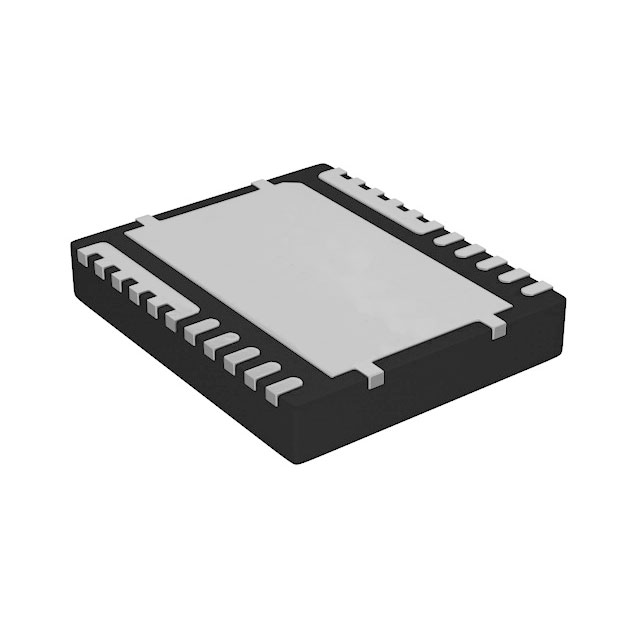

CSD96497Q5MCT
CSD96497Q5MCT
- Available: 50
- Manufacturer: Texas Instruments
- Part Number: CSD96497Q5MCT
- Detailed Description: Driver DC-DC Converters, Synchronous Buck Converter Power MOSFET 12-VSON-CLIP (5x6)
- Category: Integrated Circuits (ICs) | PMIC - Full Half-Bridge Drivers
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$8.4360
10+
$7.9298
100+
$7.5080
1000+
$7.0862
10000+
$6.6644
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Texas Instruments |
|---|---|
| Series | NexFET™ |
| Package | - |
| Standard Package | 250 |
| Product Status | Active |
| Output Configuration | - |
| Applications | DC-DC Converters | Synchronous Buck Converter |
| Interface | PWM |
| Load Type | Inductive | Capacitive | Resistive |
| Technology | Power MOSFET |
| Rds On (Typ) | - |
| Current - Output / Channel | 30A |
| Current - Peak Output | 65A |
| Voltage - Supply | 3.3V ~ 5V |
| Voltage - Load | 3.3V ~ 5V |
| Operating Temperature | -55°C ~ 150°C |
| Features | Bootstrap Circuit | Diode Emulation |
| Fault Protection | Over Current | Over Temperature | Shoot-Through | Short Circuit |
| Mounting Type | Surface Mount |
| Package / Case | 12-PowerTFDFN |
| Supplier Device Package | 12-VSON-CLIP (5x6) |
| Base Product Number | CSD96497Q5 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
