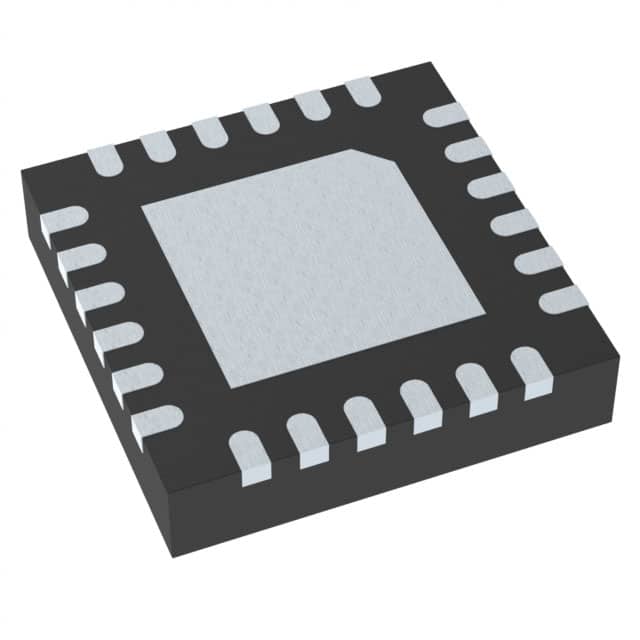

DRV8955PRGER
DRV8955PRGER
- Available: 3000
- Manufacturer: Texas Instruments
- Part Number: DRV8955PRGER
- Detailed Description: Half Bridge (4) Driver DC Motors, Solenoids Power MOSFET 24-VQFN (4x4)
- Category: Integrated Circuits (ICs) | PMIC - Full Half-Bridge Drivers
- RoHS Status： ROHS3 Compliant
Reference Price (USD)
1+
$5.4720
10+
$5.1437
100+
$4.8701
1000+
$4.5965
10000+
$4.3229
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Texas Instruments |
|---|---|
| Series | - |
| Package | - |
| Standard Package | 3000 |
| Product Status | Active |
| Output Configuration | Half Bridge (4) |
| Applications | DC Motors | Solenoids |
| Interface | Logic | PWM |
| Load Type | Inductive | Resistive |
| Technology | Power MOSFET |
| Rds On (Typ) | 165mOhm |
| Current - Output / Channel | 10A |
| Current - Peak Output | 10A |
| Voltage - Supply | 4.5V ~ 48V |
| Voltage - Load | 4.5V ~ 48V |
| Operating Temperature | -40°C ~ 125°C |
| Features | Charge Pump |
| Fault Protection | Over Current | Over Voltage | UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 24-VFQFN Exposed Pad |
| Supplier Device Package | 24-VQFN (4x4) |
| Base Product Number | DRV8955 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
