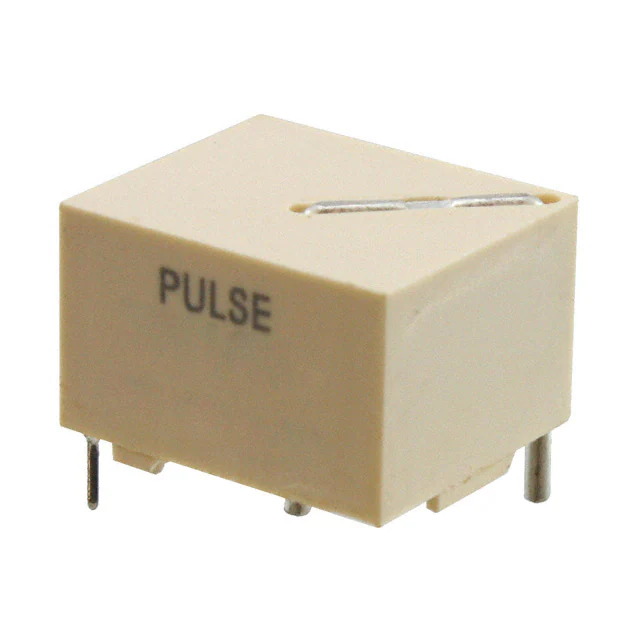

FIS115NL
FIS115NL
- Available: 90
- Manufacturer: Pulse Electronics Power
- Part Number: FIS115NL
- Detailed Description: 1:100 Current Sense Transformer 500kHz Max 2Ohm Max 18 mH Through Hole
- Category: Transformers | Current Sense Transformers
- RoHS Status： RoHS Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$2.9760
10+
$2.7974
100+
$2.6486
1000+
$2.4998
10000+
$2.3510
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Pulse Electronics Power |
|---|---|
| Series | FIS 1X5 |
| Package | Tube |
| Standard Package | 30 |
| Product Status | Active |
| Frequency Range | 500kHz Max |
| Type | Invasive |
| Inductance | 18 mH |
| ET (Volt-Time) | 350VµS |
| Turns Ratio - Primary:Secondary | 1:100 |
| Current Ratio | - |
| DC Resistance (DCR) | 2Ohm Max |
| Ratings | - |
| Mounting Type | Through Hole |
| Size / Dimension | 0.693" L x 0.591" W (17.60mm x 15.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Termination Style | PC Pin |
| Weight | 0.017 lb (7.71 g) |
Environmental & Export
| RoHS Status | RoHS Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.31.2000 |
