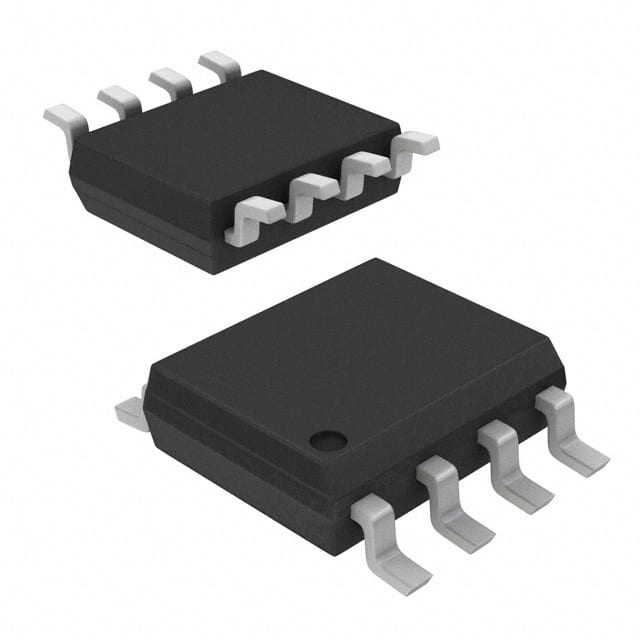

HCPL-073A
HCPL-073A
- Available: 0
- Manufacturer: Broadcom Limited
- Part Number: HCPL-073A
- Detailed Description: Optoisolator Darlington Output 3750Vrms 2 Channel 8-SO
- Category: Isolators | Optoisolators - Transistor, Photovoltaic Output
- RoHS Status： RoHS non-compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$9.3201
10+
$8.7610
100+
$8.2949
1000+
$7.8289
10000+
$7.3629
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Broadcom Limited |
|---|---|
| Series | - |
| Package | Tube |
| Standard Package | 100 |
| Product Status | Active |
| Number of Channels | 2 |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 600% @ 500µA |
| Current Transfer Ratio (Max) | 8000% @ 500µA |
| Turn On / Turn Off Time (Typ) | 3μs, 34μs |
| Rise / Fall Time (Typ) | - |
| Input Type | DC |
| Output Type | Darlington |
| Voltage - Output (Max) | 18V |
| Current - Output / Channel | 60mA |
| Voltage - Forward (Vf) (Typ) | 1.25V |
| Current - DC Forward (If) (Max) | 5 mA |
| Vce Saturation (Max) | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
| Base Product Number | HCPL-073 |
Environmental & Export
| RoHS Status | RoHS non-compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.49.8000 |
