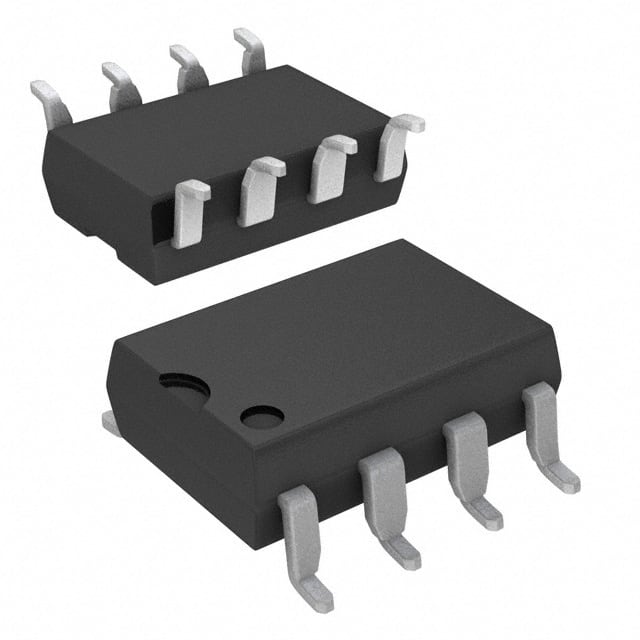

HCPL-3700-520
HCPL-3700-520
- Available: 0
- Manufacturer: Broadcom Limited
- Part Number: HCPL-3700-520
- Detailed Description: Optoisolator Darlington Output 5000Vrms 1 Channel 8-DIP Gull Wing
- Category: Isolators | Optoisolators - Transistor, Photovoltaic Output
- RoHS Status： RoHS non-compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.0000
10+
$0.0000
100+
$0.0000
1000+
$0.0000
10000+
$0.0000
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Broadcom Limited |
|---|---|
| Series | - |
| Package | Tape & Reel (TR) |
| Standard Package | 1000 |
| Product Status | Discontinued |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | - |
| Current Transfer Ratio (Max) | - |
| Turn On / Turn Off Time (Typ) | 4μs, 10μs |
| Rise / Fall Time (Typ) | 20μs, 0.3μs |
| Input Type | AC, DC |
| Output Type | Darlington |
| Voltage - Output (Max) | 20V |
| Current - Output / Channel | 30mA |
| Voltage - Forward (Vf) (Typ) | - |
| Vce Saturation (Max) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Gull Wing |
| Supplier Device Package | 8-DIP Gull Wing |
Environmental & Export
| RoHS Status | RoHS non-compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.49.8000 |
