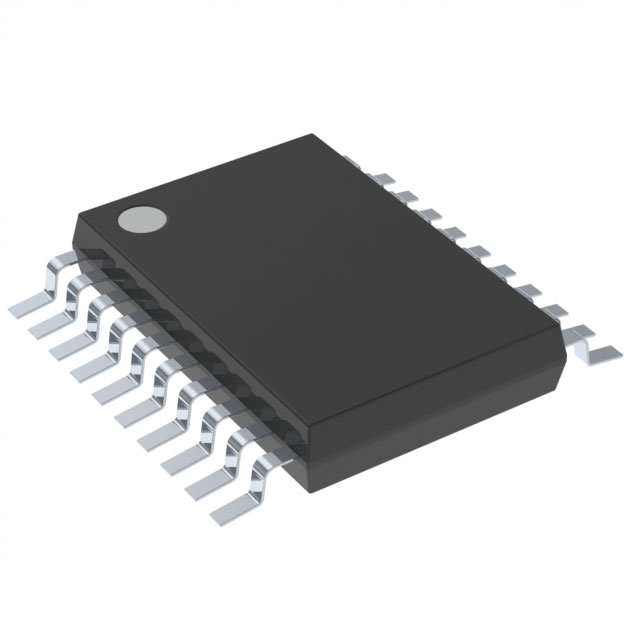

IPS4260L
IPS4260L
- Available: 4440
- Manufacturer: STMicroelectronics
- Part Number: IPS4260L
- Detailed Description: Power Switch/Driver 1:1 N-Channel 2A 20-HTSSOP
- Category: Integrated Circuits (ICs) | PMIC - Power Distribution Switches, Load Drivers
- RoHS Status：
- Datasheet: Datasheet
Reference Price (USD)
1+
$5.7000
10+
$5.3580
100+
$5.0730
1000+
$4.7880
10000+
$4.5030
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | STMicroelectronics |
|---|---|
| Series | - |
| Package | Tube |
| Standard Package | 1480 |
| Product Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 4 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | Low Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 7V ~ 50V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 2A |
| Rds On (Typ) | 280mOhm |
| Input Type | - |
| Features | - |
| Fault Protection | Current Limiting (Fixed) | Open Load Detect | Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-HTSSOP |
| Package / Case | 20-TSSOP (0.173" | 4.40mm Width) Exposed Pad |
| Base Product Number | IPS4260 |
Environmental & Export
| RoHS Status | |
|---|---|
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
