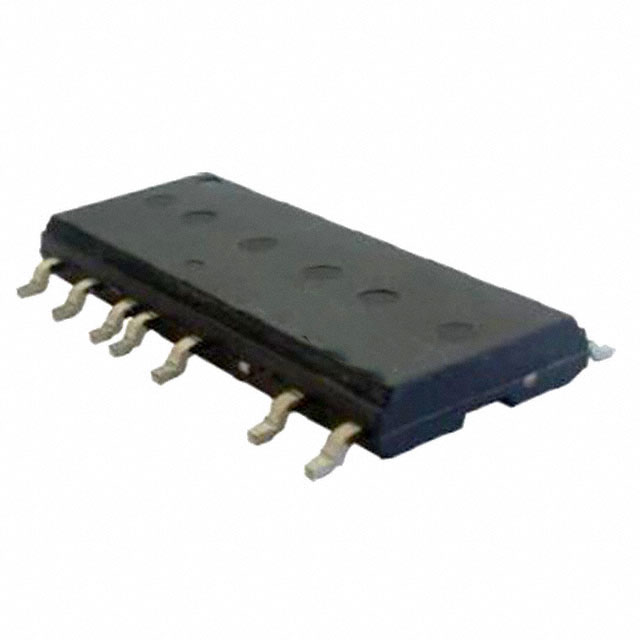

IRSM515-035PATR
IRSM515-035PATR
- Available: 0
- Manufacturer: Infineon Technologies
- Part Number: IRSM515-035PATR
- Detailed Description: Half Bridge (3) Driver AC Motors UMOS 23-SOP
- Category: Integrated Circuits (ICs) | PMIC - Full Half-Bridge Drivers
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$13.1389
10+
$12.3506
100+
$11.6936
1000+
$11.0367
10000+
$10.3797
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Infineon Technologies |
|---|---|
| Series | - |
| Package | Tape & Reel (TR) |
| Standard Package | 500 |
| Product Status | Last Time Buy |
| Output Configuration | Half Bridge (3) |
| Applications | AC Motors |
| Interface | Logic |
| Load Type | Inductive |
| Technology | UMOS |
| Rds On (Typ) | 1.8Ohm |
| Current - Output / Channel | 2.1A |
| Current - Peak Output | 15A |
| Voltage - Supply | 13.5V ~ 16.5V |
| Voltage - Load | 400V (Max) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit |
| Fault Protection | UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 32-PowerSMD Module, 23 Leads |
| Supplier Device Package | 23-SOP |
| Base Product Number | IRSM515 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
