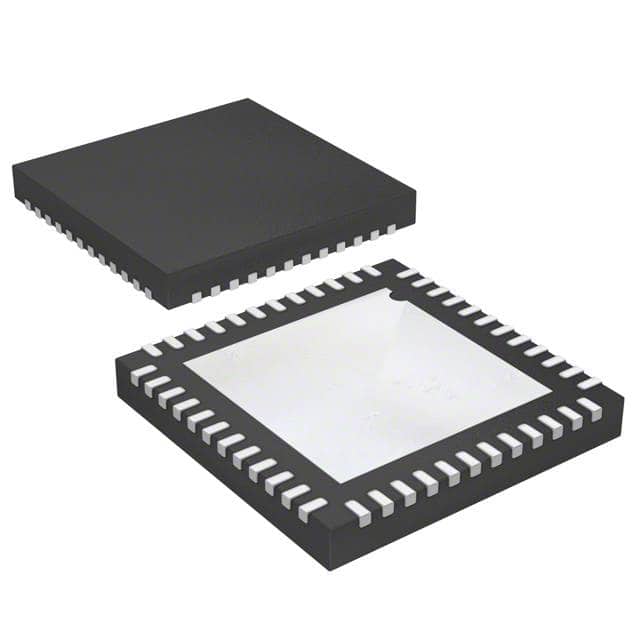

L6207QTR
L6207QTR
- Available: 2500
- Manufacturer: STMicroelectronics
- Part Number: L6207QTR
- Detailed Description: Half Bridge (4) Driver DC Motors, Stepper Motors, Voltage Regulators DMOS 48-VFQFPN (7x7)
- Category: Integrated Circuits (ICs) | PMIC - Full Half-Bridge Drivers
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$7.2720
10+
$6.8357
100+
$6.4721
1000+
$6.1085
10000+
$5.7449
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | STMicroelectronics |
|---|---|
| Series | - |
| Package | - |
| Standard Package | 2500 |
| Product Status | Active |
| Output Configuration | Half Bridge (4) |
| Applications | DC Motors | Stepper Motors | Voltage Regulators |
| Interface | Logic |
| Load Type | Inductive |
| Technology | DMOS |
| Rds On (Typ) | 280mOhm LS | 340mOhm HS |
| Current - Output / Channel | 2.5A |
| Current - Peak Output | 5.6A |
| Voltage - Supply | 8V ~ 52V |
| Voltage - Load | 8V ~ 52V |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Features | Bootstrap Circuit |
| Fault Protection | Current Limiting | Over Temperature | UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-VFQFPN (7x7) |
| Base Product Number | L6207 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
