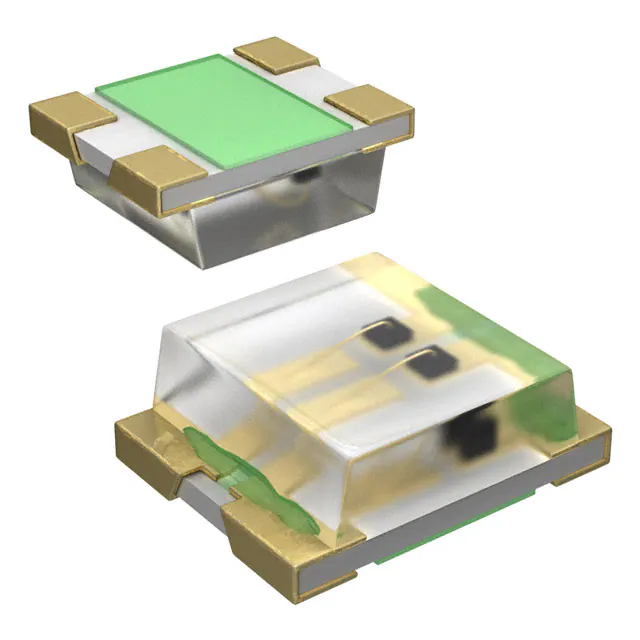

LNJ115W8RRA1
LNJ115W8RRA1
- Available: 787
- Manufacturer: Panasonic Electronic Components
- Part Number: LNJ115W8RRA1
- Detailed Description: Green, Orange 572nm Green, 620nm Orange LED Indication - Discrete 2.03V Green, 2V Orange 0605 (1613 Metric)
- Category: Optoelectronics | LED Indication - Discrete
- RoHS Status：
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.8040
10+
$0.7558
100+
$0.7156
1000+
$0.6754
10000+
$0.6352
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Panasonic Electronic Components |
|---|---|
| Series | - |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 5000 |
| Product Status | Obsolete |
| Color | Green, Orange |
| Configuration | Independent |
| Lens Color | - |
| Lens Transparency | - |
| Millicandela Rating | 15mcd Green, 32mcd Orange |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.10mm x 1.25mm |
| Voltage - Forward (Vf) (Typ) | 2.03V Green, 2V Orange |
| Current - Test | 10mA Green, 10mA Orange |
| Viewing Angle | - |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 572nm Green, 620nm Orange |
| Wavelength - Peak | 575nm Green, 630nm Orange |
| Features | - |
| Package / Case | 0605 (1613 Metric) |
| Supplier Device Package | TSS-2 Type |
| Size / Dimension | 1.60mm L x 1.25mm W |
| Height (Max) | 0.65mm |
| Base Product Number | LNJ115W |
Environmental & Export
| RoHS Status | |
|---|---|
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8541.41.0000 |
