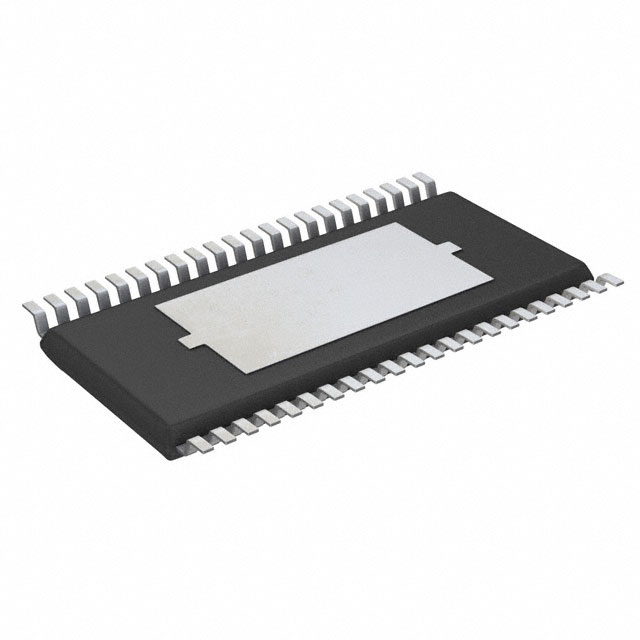

LV5235V-TLM-H
LV5235V-TLM-H
- Available: 0
- Manufacturer: onsemi
- Part Number: LV5235V-TLM-H
- Detailed Description: LED Driver IC 18 Output Linear PWM Dimming 100mA 44-SSOPJ-EP
- Category: Integrated Circuits (ICs) | Power Management (PMIC) - LED Drivers
- RoHS Status： -
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.0000
10+
$0.0000
100+
$0.0000
1000+
$0.0000
10000+
$0.0000
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | onsemi |
|---|---|
| Series | - |
| Package | Tape & Reel (TR) |
| Standard Package | 2000 |
| Product Status | Obsolete |
| Type | Linear |
| Topology | - |
| Internal Switch(s) | Yes |
| Number of Outputs | 18 |
| Voltage - Supply (Min) | 4.5V |
| Voltage - Supply (Max) | 5.5V |
| Voltage - Output | 42V |
| Current - Output / Channel | 100mA |
| Frequency | 1MHz |
| Dimming | PWM |
| Applications | - |
| Operating Temperature | -25°C ~ 75°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 44-LSSOP (0.220", 5.60mm Width) Exposed Pad |
| Supplier Device Package | 44-SSOPJ-EP |
| Base Product Number | LV5235 |
Environmental & Export
| RoHS Status | - |
|---|---|
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
