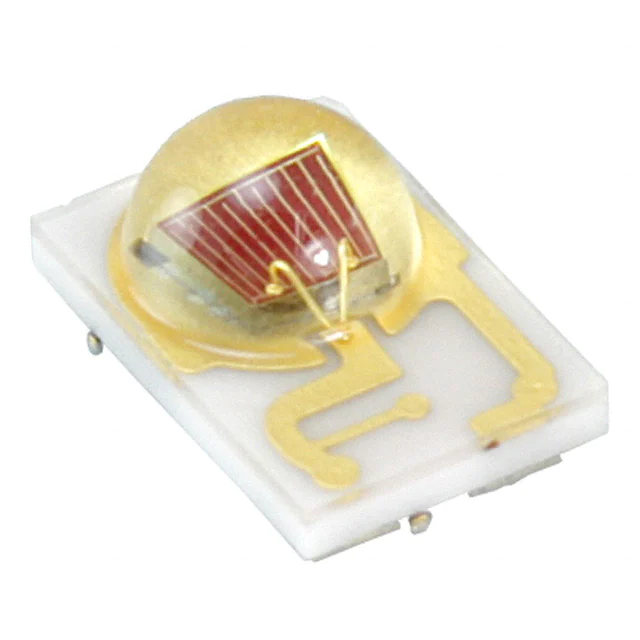

LXM3-PD01
LXM3-PD01
- Available: 1000
- Manufacturer: Lumileds
- Part Number: LXM3-PD01
- Detailed Description: LED Lighting Color series Red 655nm (Typ) 1812 (4532 Metric)
- Category: Optoelectronics | LED Lighting - Color
- RoHS Status： RoHS Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$4.1640
10+
$3.9142
100+
$3.7060
1000+
$3.4978
10000+
$3.2896
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Lumileds |
|---|---|
| Series | LUXEON Rebel Color |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 1000 |
| Product Status | Active |
| Color | Red |
| Wavelength | 655nm (Typ) |
| Current - Test | 350mA |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lumens/Watt @ Current - Test | - |
| Current - Max | 700mA |
| Luminous Flux @ Current/Temperature | 305mW (260mW ~ 350mW) |
| Temperature - Test | 25°C |
| Viewing Angle | 125° |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric) |
| Supplier Device Package | SMD |
| Size / Dimension | 0.177 L x 0.120 W (4.49mm x 3.05mm) |
| Height - Seated (Max) | 0.083 (2.10mm) |
| Thermal Resistance of Package | 8°C/W |
Environmental & Export
| RoHS Status | RoHS Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.41.0000 |
