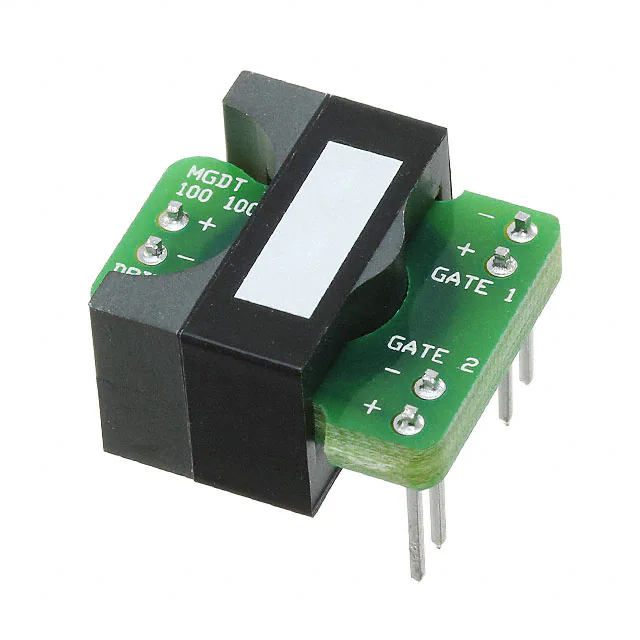

MGDT100100
MGDT100100
- Available: 192
- Manufacturer: Vishay Dale
- Part Number: MGDT100100
- Detailed Description: 240µH Gate Drive Pulse Transformer 1:1:1 Through Hole
- Category: Transformers | Pulse Transformers
- RoHS Status： RoHS non-compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$14.9280
10+
$14.0323
100+
$13.2859
1000+
$12.5395
10000+
$11.7931
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Vishay Dale |
|---|---|
| Series | - |
| Package | Tray |
| Standard Package | 64 |
| Product Status | Active |
| Transformer Type | Gate Drive |
| Inductance | 240µH |
| ET (Volt-Time) | - |
| Turns Ratio - Primary:Secondary | 1:1:1 |
| Mounting Type | Through Hole |
| Size / Dimension | 0.810" L x 0.725" W (20.57mm x 18.42mm) |
| Height - Seated (Max) | 0.450" (11.43mm) |
| Operating Temperature | -55°C ~ 125°C |
Environmental & Export
| RoHS Status | RoHS non-compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | - |
| ECCN | EAR99 |
| HTSUS | 8504.31.2000 |
