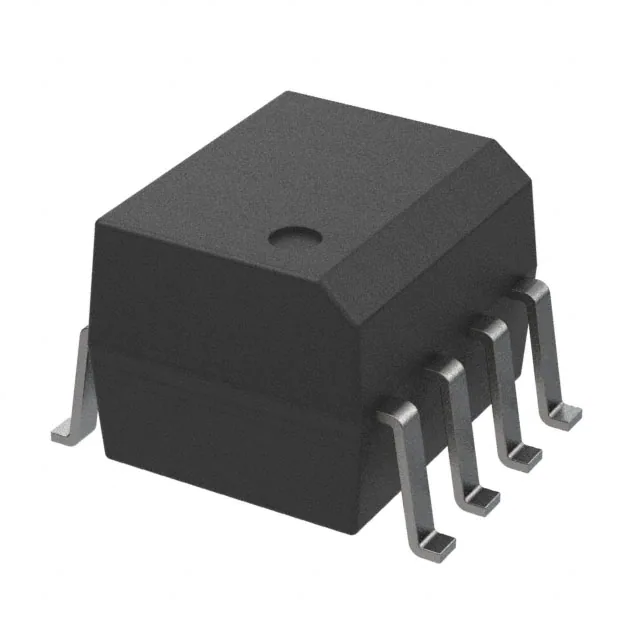

MOCD207R2M
MOCD207R2M
- Available: 7500
- Manufacturer: Fairchild Semiconductor
- Part Number: MOCD207R2M
- Detailed Description: Optoisolator Transistor Output 2500Vrms 2 Channel 8-SOIC
- Category: Isolators | Optoisolators - Transistor, Photovoltaic Output
- RoHS Status：
- Datasheet: Datasheet
Reference Price (USD)
1+
$1.3200
10+
$1.2408
100+
$1.1748
1000+
$1.1088
10000+
$1.0428
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Fairchild Semiconductor |
|---|---|
| Series | - |
| Package | Bulk |
| Standard Package | 1 |
| Product Status | Active |
| Number of Channels | 2 |
| Voltage - Isolation | 2500Vrms |
| Current Transfer Ratio (Min) | 100% @ 10mA |
| Current Transfer Ratio (Max) | 200% @ 10mA |
| Turn On / Turn Off Time (Typ) | 7.5µs | 5.7µs |
| Rise / Fall Time (Typ) | 3.2µs | 4.7µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 70V |
| Current - Output / Channel | 150mA |
| Voltage - Forward (Vf) (Typ) | 1.25V |
| Current - DC Forward (If) (Max) | 60 mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154" | 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
Environmental & Export
| RoHS Status | |
|---|---|
| Moisture Sensitivity Level (MSL) | |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8541.49.8000 |
