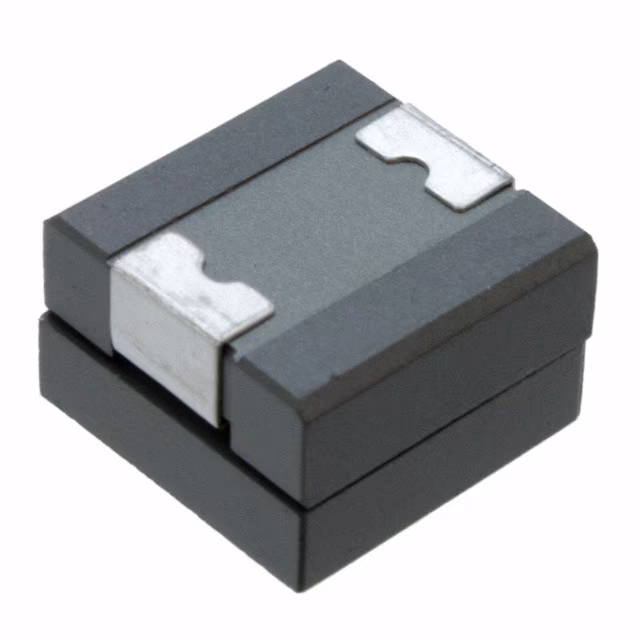

PA1513.321NLT
PA1513.321NLT
- Available: 1000
- Manufacturer: Pulse Electronics
- Part Number: PA1513.321NLT
- Detailed Description: 320 nH Shielded Inductor 41 A 0.53mOhm Nonstandard
- Category: Inductors, Coils, Chokes | Fixed Inductors
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$1.2272
10+
$1.1536
100+
$1.0922
1000+
$1.0308
10000+
$0.9695
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Pulse Electronics |
|---|---|
| Series | PA1513NL |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 400 |
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 320 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 41 A |
| Current - Saturation (Isat) | 50A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.53mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.530" L x 0.510" W (13.46mm x 12.95mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.50.4000 |
