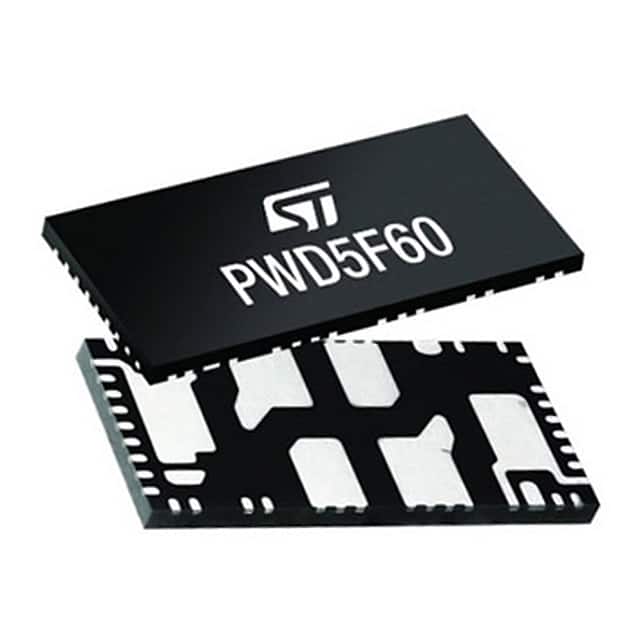

PWD5F60
PWD5F60
- Available: 1020
- Manufacturer: STMicroelectronics
- Part Number: PWD5F60
- Detailed Description: Half Bridge (2) Driver Industrial Power MOSFET 46-VFQFPN (15x7)
- Category: Integrated Circuits (ICs) | PMIC - Full Half-Bridge Drivers
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$8.0280
10+
$7.5463
100+
$7.1449
1000+
$6.7435
10000+
$6.3421
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | STMicroelectronics |
|---|---|
| Series | - |
| Package | - |
| Standard Package | 1020 |
| Product Status | Active |
| Output Configuration | Half Bridge (2) |
| Applications | Industrial |
| Interface | Logic |
| Load Type | Inductive |
| Technology | Power MOSFET |
| Rds On (Typ) | 1.38Ohm |
| Current - Output / Channel | 3.5A |
| Current - Peak Output | 14A |
| Voltage - Supply | 10V ~ 20V |
| Voltage - Load | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Features | - |
| Fault Protection | UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 46-PowerVQFN |
| Supplier Device Package | 46-VFQFPN (15x7) |
| Base Product Number | PWD5F60 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
