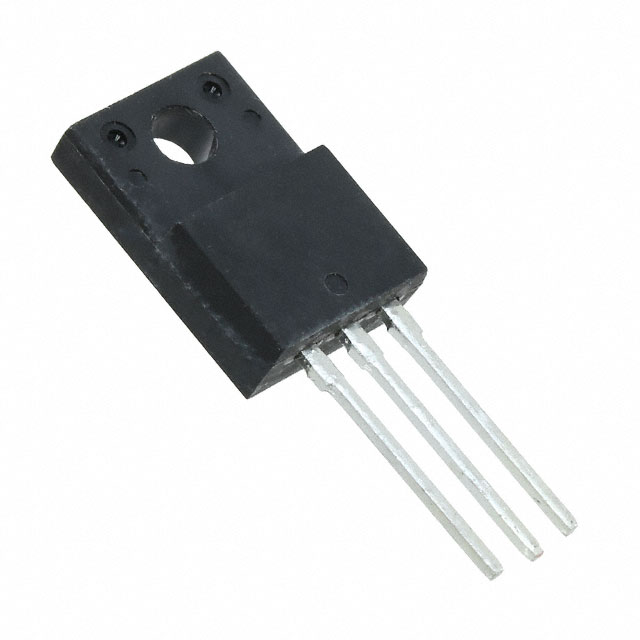

RF2001T3D
RF2001T3D
- Available: 4290
- Manufacturer: Rohm Semiconductor
- Part Number: RF2001T3D
- Detailed Description: Diode Array 1 Pair Common Cathode Standard 300 V 10A Through Hole TO-220-3 Full Pack
- Category: Discrete Semiconductor Products | Diodes - Rectifiers - Arrays
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.9464
10+
$0.8897
100+
$0.8423
1000+
$0.7950
10000+
$0.7477
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Rohm Semiconductor |
|---|---|
| Series | - |
| Package | Bulk |
| Standard Package | 500 |
| Product Status | Active |
| Diode Configuration | 1 Pair Common Cathode |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 300 V |
| Current - Average Rectified (Io) (per Diode) | 10A |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 10 A |
| Speed | Fast Recovery =< 500ns | > 200mA (Io) |
| Reverse Recovery Time (trr) | 25 ns |
| Current - Reverse Leakage @ Vr | 10 µA @ 300 V |
| Operating Temperature - Junction | 150°C (Max) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 Full Pack |
| Supplier Device Package | TO-220FN |
| Base Product Number | RF2001 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
