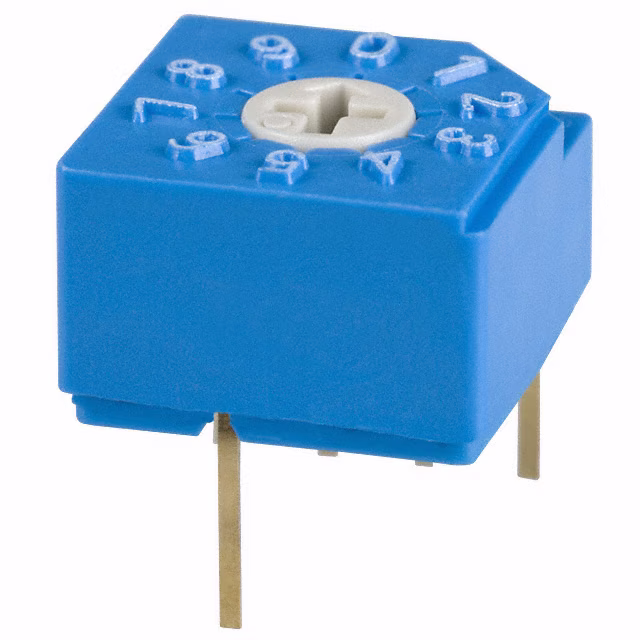

S-2030A
S-2030A
- Available: 0
- Manufacturer: Nidec Copal Electronics
- Part Number: S-2030A
- Detailed Description: Dip Switch BCD Complement 10 Position Through Hole Rotary for Tool Actuator 100mA 5VDC
- Category: Switches | DIP Switches
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$3.1177
10+
$2.9306
100+
$2.7748
1000+
$2.6189
10000+
$2.4630
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Nidec Copal Electronics |
|---|---|
| Series | S-2000A |
| Package | Bulk |
| Standard Package | 50 |
| Product Status | Active |
| Circuit | BCD Complement |
| Number of Positions | 10 |
| Current Rating (Amps) | 100mA |
| Voltage Rating | 5VDC |
| Actuator Type | Rotary for Tool |
| Actuator Level | Flush, Recessed |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Height Above Board | 0.275" (6.99mm) |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Pitch | 0.100" (2.54mm), Full |
| Washable | Yes |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Body Material | Polybutylene Terephthalate (PBT) |
| Length | 0.394" (10.00mm) |
| Mechanical Life | - |
| Electrical Life | 10,000 Steps |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8536.50.9065 |
